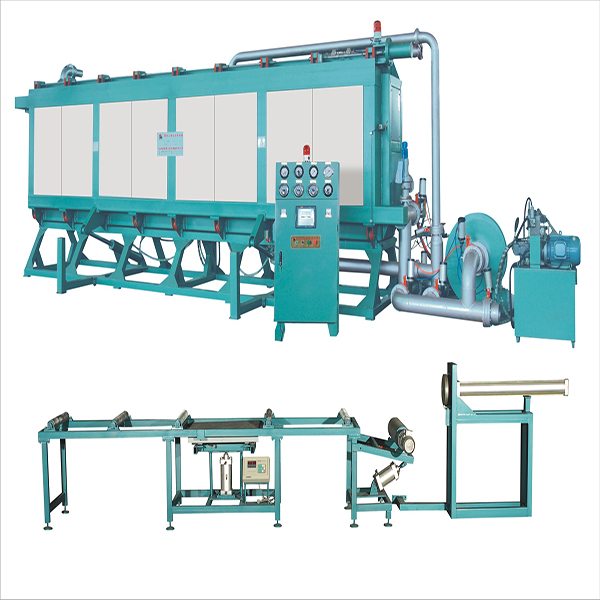

Wholesale New Product Etpu Mold - Automatic EPS Block Molding Machine with air cooling – WELLEPS Detail:

Main Features

1. Machine is made of high strength pipe and steel plate, all the steel is under heat treatment, sand blasting, spraying antirust painting, to increasing strength, not rust, to ensure machine operation is stable and long service life.

2. Machine adopts advanced processing technology and better pipe structure design, greatly improving the production efficiency.

3. Machine use unique heating process and efficient vacuum with condensing system, has strong steam penetrating power and energy saving design. Produced blocks have excellent cohesiveness, low moisture content, to ensure every customer’s satisfy.

4. Adopt PLC and touch screen control system, equipped with material level sensor can realize automatic control of feeding, equipped with foam pressure sensor control cooling time automatically.

5. Machine use good quality electrical, pneumatic components, valves and other parts. And the parts with international standard, so customer is easy to find replacement at local.

6. Machine adopts hydraulic pressure station to be the center control system. Use hydraulic open door, ejector de-mould and locking, guarantee the machine running smoothly, stable performance.

block molding machine

Technical Data

Item   PSB200TF PSB300TF PSB400TF PSB600TF
Mould Cavity Size mm 2040*1240*630 3060*1240-940*630 4080*1240-940*630 6100*1240-940*630
Block Size mm 2000*1200*600 3000*1200-900*600 4000*1200-900*630 6000*1200-900*600
Steam ENTRY DN150 DN150 DN150 DN200
Consumption 20-30kg/cycle 30-40kg/cycle 45-55kg/cycle 60-70kg/cycle
Pressure 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
Compressed Air ENTRY DN40 DN40 DN50 DN65
Consumption 1-1.5m³/cycle 1.5-1.8m³/cycle 1.8-2m³/cycle 2-2.3m³/cycle
Pressure 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
Drainage Steam vent φ100mm φ100mm φ200mm φ200mm
Blower outlet φ100mm φ100mm φ150mm φ150mm
Throughpt 15kg/m3 7-12min/cycle 8-15min/cycle 8-18min/cycle 8min/cycle
Power   14.5Kw 14.5Kw 18.5Kw 18.5Kw
Overall Dimension L*W*H 4000*2150*2120 5030*2270*2120 6040*2270*2250 8100*2500*3100
Weight   6000kg 7500kg 12000kg 15000kg
Room Height Required   6000mm 6000mm 6000mm 6000mm

block molding machine

Products

block molding machine
block molding machine
block molding machine
block molding machine

Remarks

F is air cooling type, air cooling without vacuum system.

F type products of maximum thickness is 600 mm.
