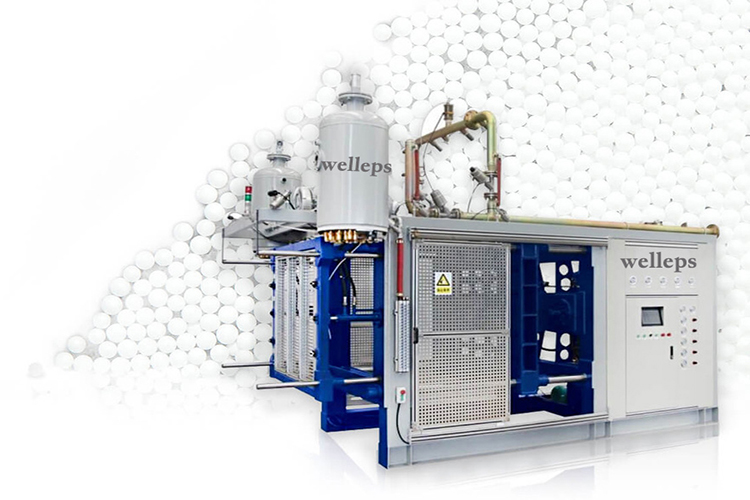

Thermocol Foam Moulding Machine Fruit/Fish Boxes Packaging Making Molding Machine
Main advantage:
1. Use servo drive system, the machine can work very stable.
2. Use two side steam and vacuum, machine works more efficiently.
3. With special design ejectors shelf for easy to install the moulds.
Features of eps foam box machine:
1.Equipment body use the high strength steeel welded together, after the tempering process, sandblasting
processing, to ensure the machne have strong structure, not get rust and increae the machine's working life.
2.Equipment adopts Mitsubishi PLC(programmable controller) and touch screen control. The whole
production process is working automatically.
3.Macine with high-pressure feed system, feeding mould fast,machine can install 36 pcs filling guns.
4.Machine with wacuum system, it can make the cycle time shorter ,cooling much faster ,and reduce the
moisture content of products, so that products moisture content of 8% or even less.
5.Machine use double cylinder for the ejector frame, action smoothly and work coordination, to ensure not
damage the products when ejecting.
6.Hydraulic system with large flow hydraulic pressure drive, move fast, lock mouled even, low noise and
energy saving,etc.
| Item | PSZS-1412 | PSZS-1816 | PSZS-2018 | ||
| Mould Dimension | mm | 1400*1200 | 1850*1600 | 2000*1800 | |
| Rear window dimensions | mm | 1250*1050 | 1700*1450 | 1750*1650 | |
| Effective forming area | mm | 1200*1000 | 1500*1250 | 1650*1450 | |
| Max Produce Size | mm | 400 | 400 | 400 | |
| Steam | Pipe connect | DN | 100 | 100 | 100 |
| Die connect | DN | 40/6 | 40/8 | 40/8 | |
| Pressure | kg/cm² | <5 | <5 | <5 | |
| Consumption | kg/cycle | 3-12 | 3-15 | 3-18 | |
| Air | Pipe connect | DN | 80/2 | 80/2 | 80/4 |
| Pressure | kg/cm² | <4 | <4 | <4 | |
| Cooling Water | Pipe connect | DN | 80 | 80 | 80 |
| Die connect | DN | 25/2 | 25/3 | 25/3 | |
| Pressure | kg/cm² | <3 | <3 | <3 | |
| temperature | ℃ | 45-55 | 45-55 | 45-55 | |
| Single Vacuum | Motor | KW | 5 | 7.5 | 7.5 |
| Connect | DN | 100 | 100 | 100 | |
| Drain | DN | 40 | 40 | 40 | |
| Dain water | DN | 25 | 25 | 25 | |
| Vacuum Center | Connect | DN | 100 | 100 | 100 |
| Drainage | Drain Outlet | Φ | 159 | 159 | 159 |
| Mould Outlet | DN | 40/3 | 40/4 | 40/4 | |
| Hydralic system | Motor | KW | 7.5 | 11 | 11 |
| Pump | L/min | 31/97 | 31/116 | 31/116 | |
| Lock power | T | 24 | 37 | 46 | |
| Open-close cylinder | mm | 100*2 | 125*2 | 140*2 | |
| Demould cylinder | mm | 50*2 | 50*2 | 50*2 | |
| Hopper | Volume | m³ | 0.3 | 0.4 | 0.4 |
| Motor | KW | 1.5 | 2.2 | 2.2 | |
| Material hole | Pieces | 22 | 44 | 44 | |
| Electric Load | KW | 16.5 | 20.7 | 20.7 | |
| Overall Dimension | mm | 4800*3320*2800 | 4800*3600*3200 | ||
| Weight | kg | 7200 | 8000 | ||

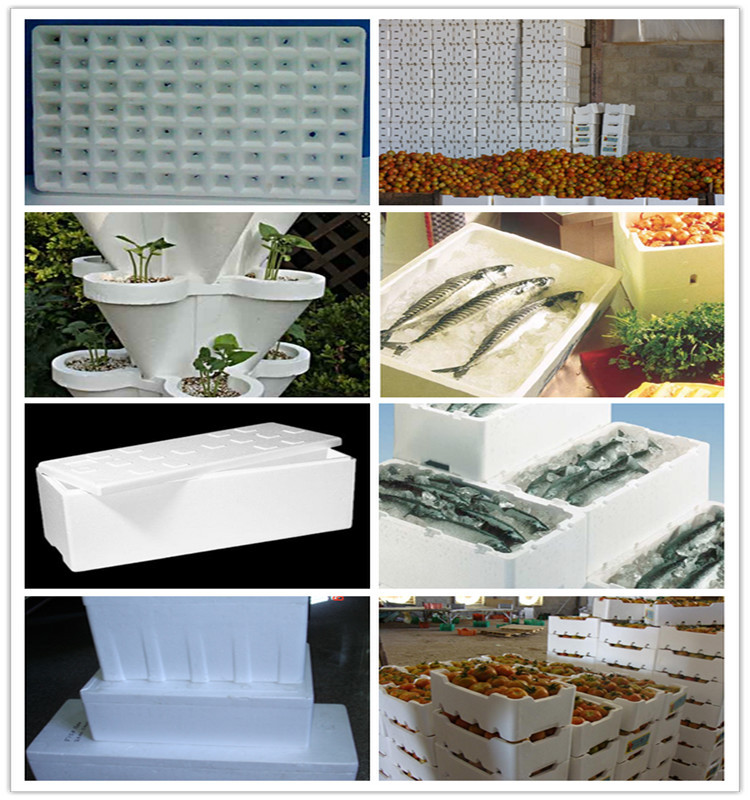

EPS foam Machine is widely used to make EPS foam fish box
EPS foam packages for transpotation
EPS ICF blocks for construction building
EPS foam decoration cornice ceilling,etc.
Services:
1. Value clients, guarantee equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients’ inquiry , such as different design, different brand parts, different colors, more function,etc.
3. Engineers go to clients’ factory in time for installation , training and trial production .
4. Lifetime technical service support.
