EPS Automatic Foam Block Cutting Machine Shape Cutting Machine
Main Features

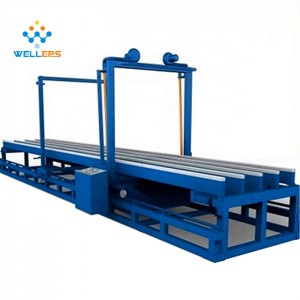

EPS Automatic Foam Block Cutting Machine
1.The main frame of this machine is welded from square profile steel with strong structure,high strength and no deformation.
2.Variable frequency stepless speed regulation, Guide rail drive to smooth cutting of products.
3.cutting machine can do horizontal and vertical cutting. Multiple wires can be set at one time for cutting to increase cutting efficiency.
4.Applies large power transformer, which promote the speed of cutting and lengthen service life.
5. Machine size from 2m to 8m, or can design according customer's requirement.
Technical Data
| Item | Type | ||||
| Unit | SPC200C | SPC400C | SPC600C | SPC800C | |
| Max Block Size | mm | 2000*1300*1300 | 4000*1300*1300 | 6000*1300*1300 | 8000*1300*1300 |
| Working Speed | 0~2m/min | 0~2m/min | 0~2m/min | 0~2m/min | |
| Power | Kw | 22.3 | 22.3 | 22.3 | 22.3 |
| Overall Dimension | mm | 4400*2600*3250 | 6400*2600*3250 | 8400*2600*3250 | 10400*2600*3250 |
| Weight | kg | 1300 | 2000 | 2800 | 3200 |

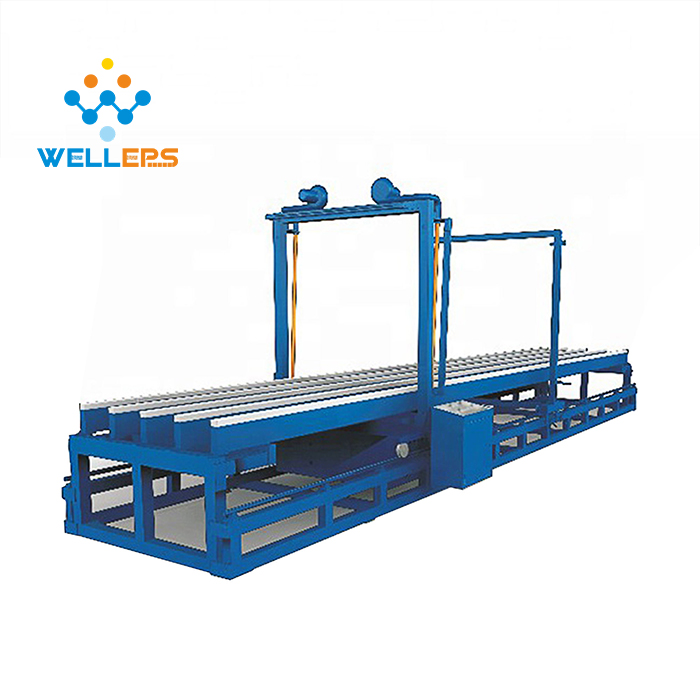

EPS Cutting Machine
Type: SPC600C Automatic type
Machine overall dimension：8400 x 2,600 x 3,250mm
Three-direction cutting, horizontal, vertical and cross cutting
Max 30 cutting wires can be manually set in horizontal direction,
and max 15 cutting wires in vertical direction
Minimum thickness to be cut is 10mm
Suit for cutting Block size：6,000x1,300x1,300mm
Suit for different density block
Cutting speed: 0～2m/min,
Capacity :denisity15g/l, block size 3,000x1300x1300mm，
cut time：8~12min
Connect load： 22.3kw
ATTENTION
1.EPS block should be dried before cutting to increase efficiency and avoid damage of hot wires;
2.Check cutting machine before operation to ensure reliability of ground connection, correct running direction of main cutter, air blower and limit switch;
3.Strictly prevent foam beads and cutting fragments entering into the electric system to avoid conflagration because this equipment is a strong electric current working system;
4.Maintenance and attention points of variable-speed gear box.
5.Replace lubricating oil in gear box every half a year.
6.Keep enough lubrication oil in oil tank and check it regularly;
7.Pay attention to running condition of whole equipment during its working, Stop to check when there is any unusual situation.
8.Notice: Do not whack the gear box.
9.Fire Extinguisher must be prepared at working site and operator should monitor the machine during operation;
10.Operators is allowed to operate after training.
