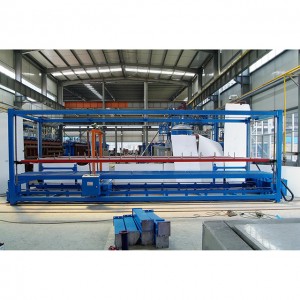

Hot Wire EPS Cutter Machine Foam Cutter Machine

Hot wire cutting machine also as known Styrofoam cutting machine or foam cutting machine.It’s used to cut EPS blocks to desired sizes.
This kind cutting machine can do horizontal and vertical cutting. Multiple wires can be set at one time for down cutting to increase cutting efficiency.


Product Detail

FAQ

Product Tags

Main Features

1.The main frame of this machine is welded from square profile steel with strong structure,high strength and no deformation.
2.Variable frequency stepless speed regulation, Guide rail drive to smooth cutting of products.
3.cutting machine can do horizontal and vertical cutting. Multiple wires can be set at one time for cutting to increase cutting efficiency.
4.Applies large power transformer, which promote the speed of cutting and lengthen service life.
5. Machine size from 2m to 8m, or can design according customer's requirement.

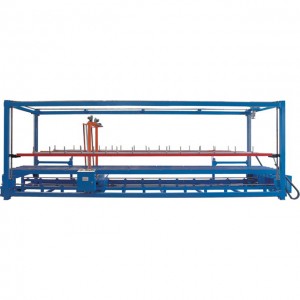

Cutting machineB

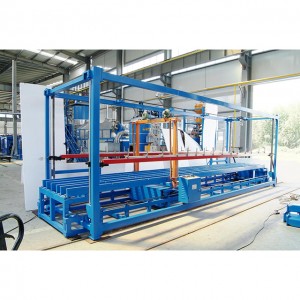

Cnc Foam Cutter- (4)

Technical Data

Item Type
Unit SPC200C SPC600C SPC800C
Max Block Size mm 2000*1300*1300 6000*1300*1300 8000*1300*1300
Power Kw 22.3 22.3 22.3
Overall Dimension mm 4400*2600*3250 8400*2600*3250 10400*2600*3250
Weight kg 1300 2800 3200
