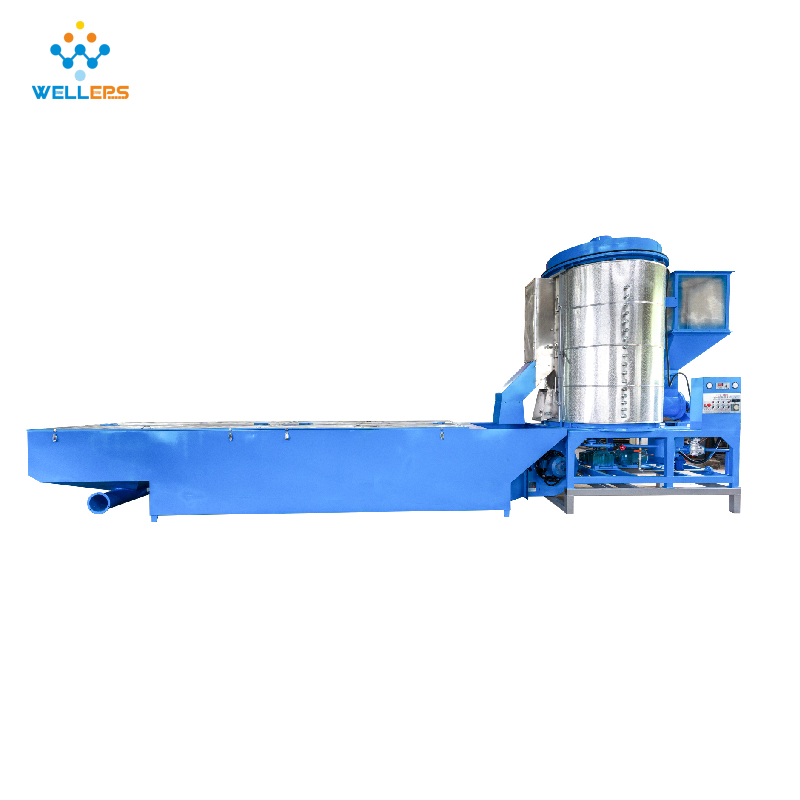

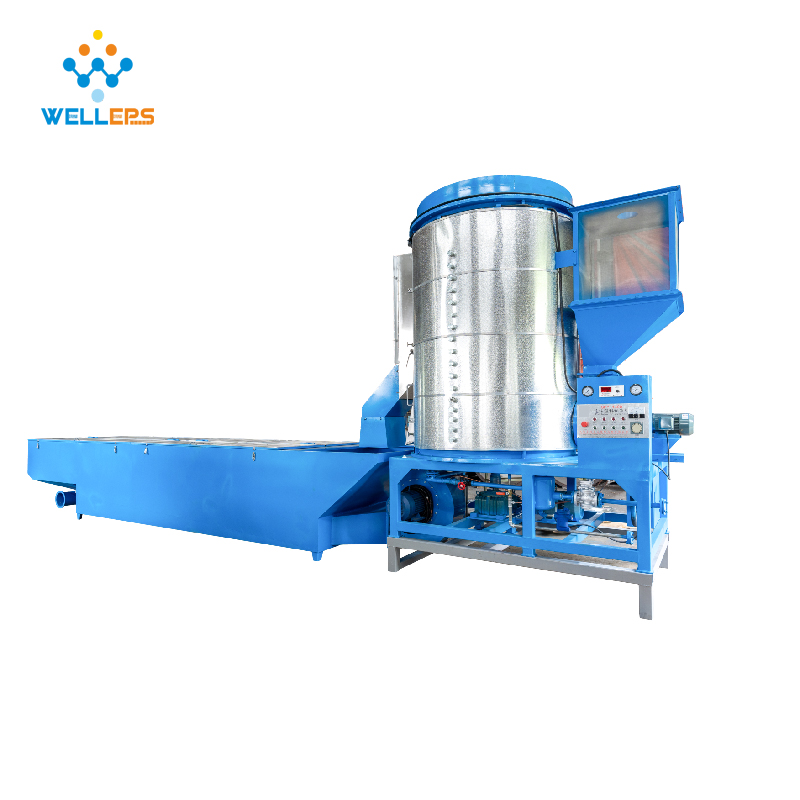

High Quality PSY70-120 Continuous Pre Expanded Styrofoam Production Line

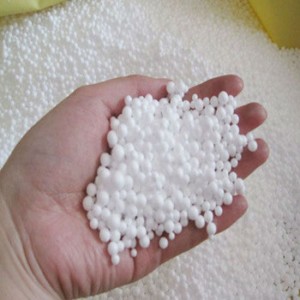

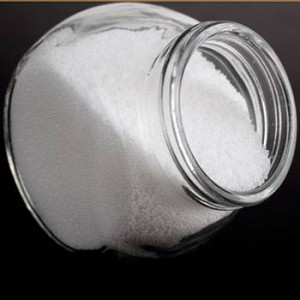

Continuous Pre Expanded Styrofoam turns eps raw material (expanded polystyrene) to big and light foam beads through steam heating. Including common dryer bed, screw conveyer, filling, sieving devices, etc

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Main Features

1.Feeding, expander, filtrating, crushing, transport to silos automatically

2.With first and second expansion, the first time filling adopt frequency conversion feeding device, guarantee the stability of feeding

3.Uniform foaming, foam density range is 6-35g/l

4.Material barrel inside and outside, fluidized bed dryer made of stainless steel, in order to maintain the durable use and stable performance

5.Electrical protection device

6.Adopt Japanese reducing valve

Technical Data

Item		Type
Item		PSY70	PSY90	PSY120
Expansion Chamber	Diameter	Φ700mm	Φ900mm	Φ1200mm
	Volume	0.6m³	1.2m³	2.2m³
	Useable Volume	0.4m³	0.8m³	1.5m³
Steam	Entry	DN20	DN25	DN40
	Consumption	80-100kg/h	100-150kg/h	150-200kg/h
	Pressure	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Compressed Air	Entry	DN15	DN20	DN20
Compressed Air	Pressure	0.6-0.8MPa	0.6-0.8MPa	0.6-0.8MPa
Drainage	Condensate	Φ20mm	Φ20mm	Φ20mm
Throughput	15g/l	100kg/h	150kg/h	250kg/h
	20g/l	120kg/h	200kg/h	300kg/h
	25g/l	150kg/h	250kg/h	410kg/h
	30g/l	200kg/h	300kg/h	500kg/h
Material Conveying Line		Φ150mm	Φ150mm	Φ150mm
Power		8.93Kw	9.73Kw	14.83Kw
Density	First expansion	12-30g/l	12-30g/l	14-30g/l
Density	Second expansion	8-11g/l	8-11g/l	8-13g/l
Overall Dimension	LWH	470026602600	470029303200	49054655 3250
Weight		1300kg	1500kg	1800kg
Room Height Required		3000mm	3000mm	3000mm
