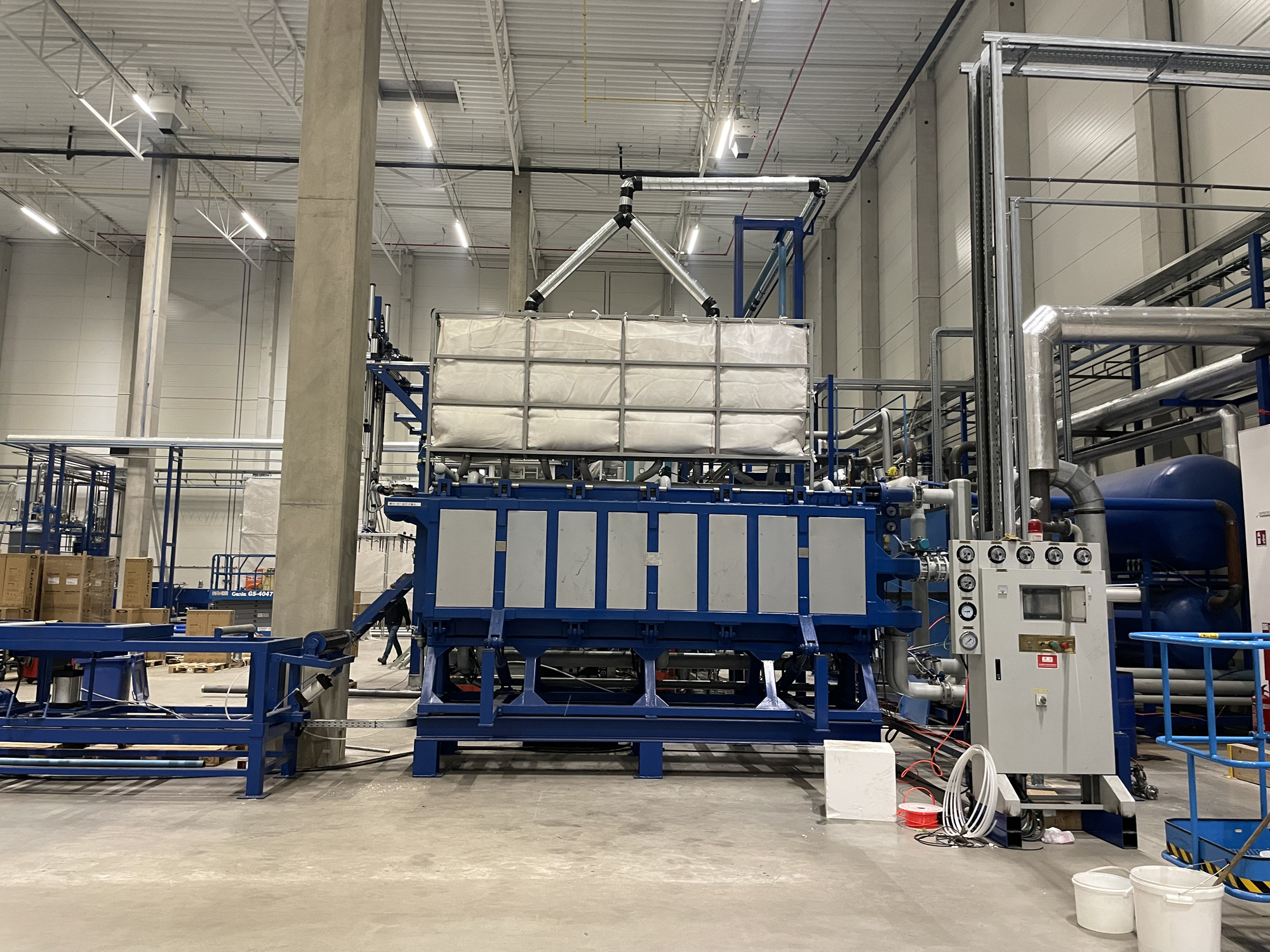

EPS block moulding machine

EPS block moulding machine have two type Horizontal type EPS block molding machine and Vertical type EPS Block molding machine。

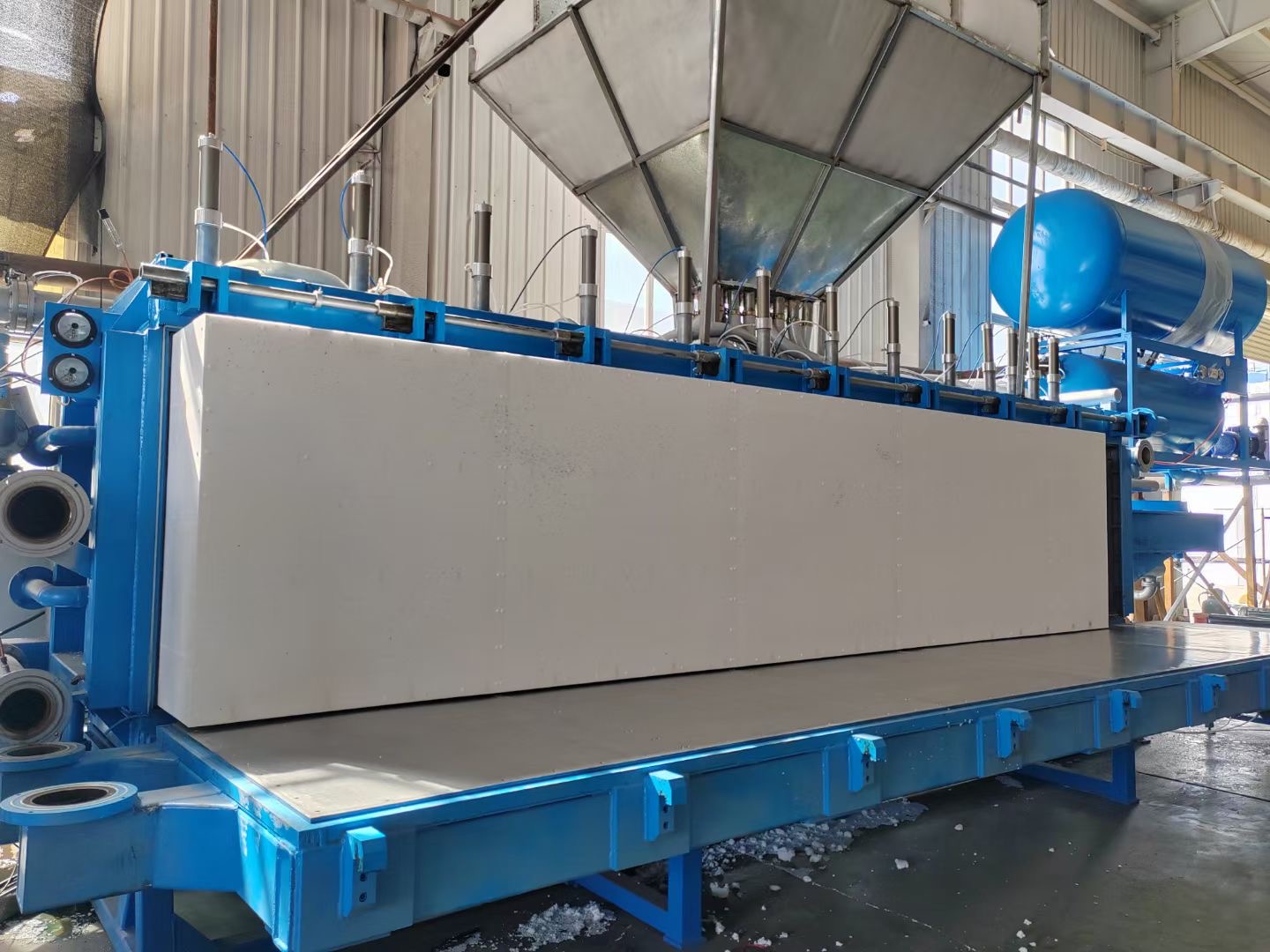

EPS block moulding machine is used to produce high density EPS block/EPS board/EPS panel for construction building wall panels.


Product Detail

FAQ

Product Tags

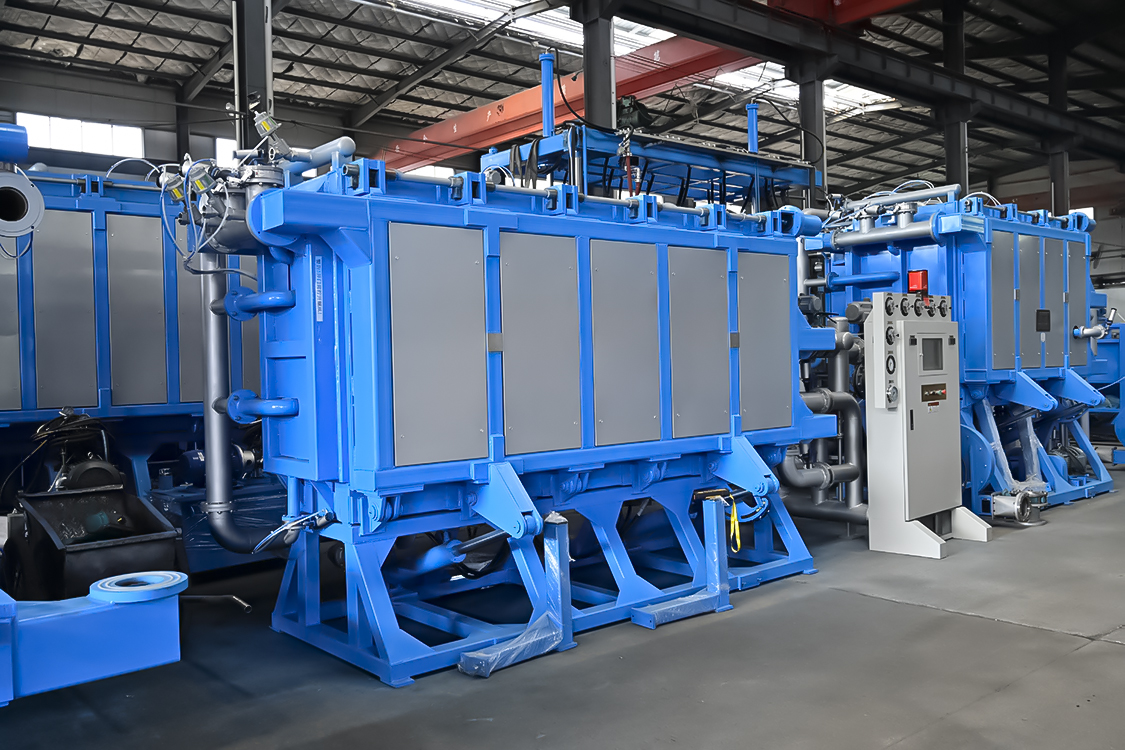

Main Features

EPS block moulding machine Main Features

1. Machine is made of high strength pipe and steel plate, all the steel is under heat treatment, sand blasting, spraying antirust painting, to increasing strength, not rust, to ensure machine operation is stable and long service life.

2. Machine adopts advanced processing technology and better pipe structure design, greatly improving the production efficiency.

3. Machine use unique heating process and efficient vacuum with condensing system, has strong steam penetrating power and energy saving design. Produced blocks have excellent cohesiveness, low moisture content, to ensure every customer’s satisfy.

4. Adopt PLC and touch screen control system, equipped with material level sensor can realize automatic control of feeding, equipped with foam pressure sensor control cooling time automatically.

5. Machine use good quality electrical, pneumatic components, valves and other parts. And the parts with international standard, so customer is easy to find replacement at local.

6. Machine adopts hydraulic pressure station to be the center control system. Use hydraulic open door, ejector de-mould and locking, guarantee the machine running smoothly, stable performance.

Technical Parameters

EPS block moulding machine technical parameters

Item Type
PSB200TZ PSB300TZ PSB400TZ PSB600TZ
Mould Cavity Size mm 2050*1240-940*1030 3060*1240-940*1030 4080*1240-940*1030 6100*1240-949*1030
Block Size mm 2000*1200-900*1000 3000*1200-900*1000 4000*1200-900*1000 6000*1200-900*1000
Steam Entry DN150 DN150 DN150 DN200
 Consumption 25-45kg/cycle 45-65kg/cycle 60-85kg/cycle 95-120kg/cycle
Pressure 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
 Compressed Air  Entry DN40 DN40 DN50 DN65
Consumption 1.5-2m3/cycle 1.8-2.2m3/cycle 2-2.5m3/cycle 2-3m3/cycle
Pressure 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
Cooling Water  Entry DN40 DN40 DN40 DN40
Consumption 0.2-0.4m3/cycle 0.4-0.6m3/cycle 0.6-0.8m3/cycle 0.8-1m3/cycle
 Pressure 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa
Drainage Vacuum drain Φ100mm Φ125mm Φ125mm Φ125mm
 Steam vent Φ100mm Φ100mm Φ200mm Φ200mm
 Condensate Φ150mm Φ150mm Φ150mm Φ150mm
Blower outlet Φ100mm Φ100mm Φ150mm Φ150mm
Throughput 15kg/m3 4min/cycle 6min/cycle 7min/cycle 8min/cycle
Power 23.75Kw 26.75Kw 28.5Kw 37.5Kw
Overall Dimension L*W*H 5700*4000*3300 7200*4500*3500 11000*4500*3500 12600*4500

*3500

Weight 8000kg 9500kg 15000kg 18000kg
Room Height Required 6000mm 6000mm 6000mm 6000mm
EPS element for construction
EPS sheet for insulation

Production Line

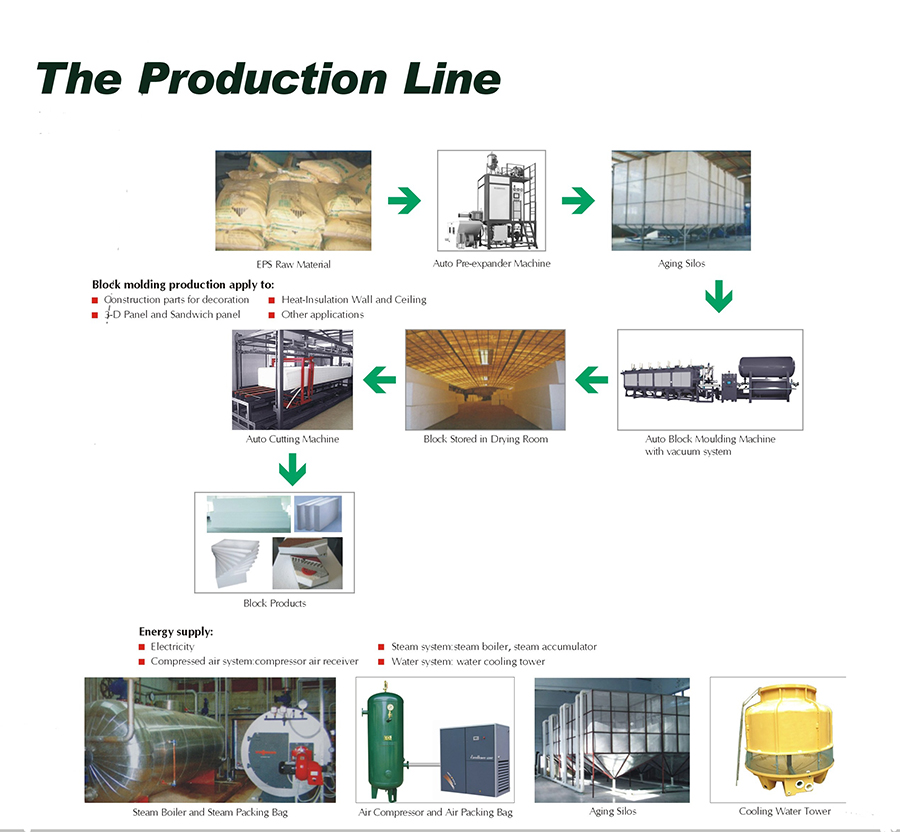

EPS block moulding machine whole process: EPS Beads--pre-expander --silo--block molding machine--cutting machine --EPS sheets or profile
Auxiliary equipment: Steam boiler and accumulator , Air compressor and Air receiver , water cooling tower and pumps

eps block molding machine-2

Application

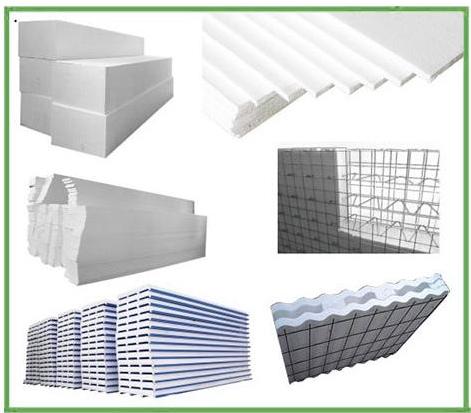

EPS block molding Application:

EPS sheet for insulation

EPS element for construction

EPS profile for decoration
