Factory Price For Solenoid Valve - Thermocol foam moulding machine Fruit/fish Boxes packaging Making Molding Machine – WELLEPS Detail:

Main advantage:

1. Use servo drive system, the machine can work very stable.

2. Use two side steam and vacuum, machine works more efficiently.

3. With special design ejectors shelf for easy to install the moulds.

Features of eps foam box machine:

1.Equipment body use the high strength steeel welded together, after the tempering process, sandblasting

processing, to ensure the machne have strong structure, not get rust and increae the machine’s working life.

2.Equipment adopts Mitsubishi PLC(programmable controller) and touch screen control. The whole

production process is working automatically.

3.Macine with high-pressure feed system, feeding mould fast,machine can install 36 pcs filling guns.

4.Machine with wacuum system, it can make the cycle time shorter ,cooling much faster ,and reduce the

moisture content of products, so that products moisture content of 8% or even less.

5.Machine use double cylinder for the ejector frame, action smoothly and work coordination, to ensure not

damage the products when ejecting.

6.Hydraulic system with large flow hydraulic pressure drive, move fast, lock mouled even, low noise and

energy saving,etc.

Item			PSZS-1412	PSZS-1816	PSZS-2018
Mould Dimension		mm	1400*1200	1850*1600	2000*1800
Rear window dimensions		mm	1250*1050	1700*1450	1750*1650
Effective forming area		mm	1200*1000	1500*1250	1650*1450
Max Produce Size		mm	400	400	400
Steam	Pipe connect	DN	100	100	100
	Die connect	DN	40/6	40/8	40/8
	Pressure	kg/cm²	<5	<5	<5
	Consumption	kg/cycle	3-12	3-15	3-18
Air	Pipe connect	DN	80/2	80/2	80/4
Air	Pressure	kg/cm²	<4	<4	<4
Cooling Water	Pipe connect	DN	80	80	80
	Die connect	DN	25/2	25/3	25/3
	Pressure	kg/cm²	<3	<3	<3
	temperature	℃	45-55	45-55	45-55
Single Vacuum	Motor	KW	5	7.5	7.5
	Connect	DN	100	100	100
	Drain	DN	40	40	40
	Dain water	DN	25	25	25
Vacuum Center	Connect	DN	100	100	100
Drainage	Drain Outlet	Φ	159	159	159
Drainage	Mould Outlet	DN	40/3	40/4	40/4
Hydralic system	Motor	KW	7.5	11	11
	Pump	L/min	31/97	31/116	31/116
	Lock power	T	24	37	46
	Open-close cylinder	mm	100*2	125*2	140*2
	Demould cylinder	mm	50*2	50*2	50*2
Hopper	Volume	m³	0.3	0.4	0.4
	Motor	KW	1.5	2.2	2.2
	Material hole	Pieces	22	44	44
Electric Load		KW	16.5	20.7	20.7
Overall Dimension		mm	480033202800	480036003200
Weight		kg	7200	8000

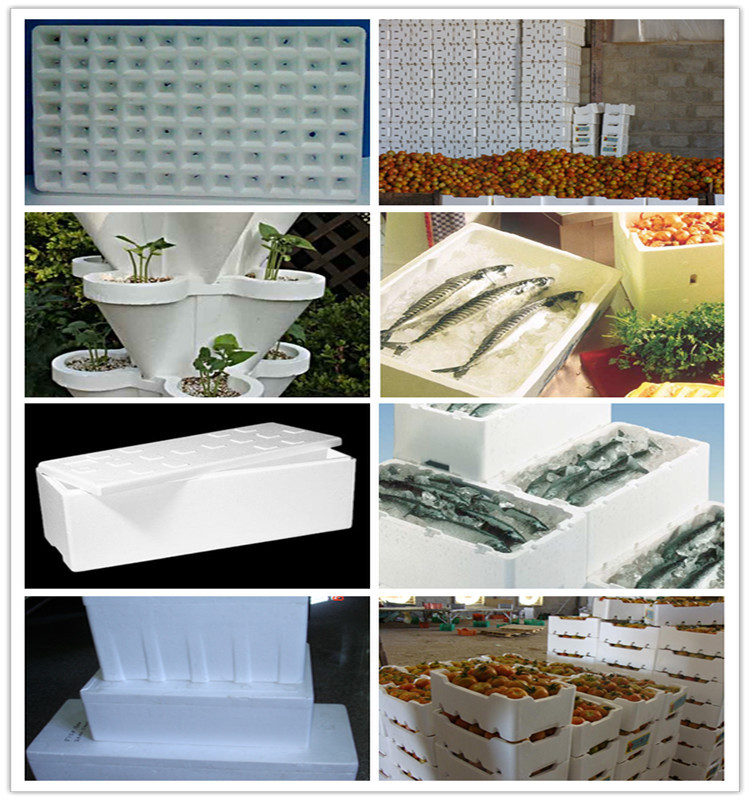

EPS foam Machine is widely used to make EPS foam fish box

EPS foam packages for transpotation

EPS ICF blocks for construction building

EPS foam decoration cornice ceilling,etc.

Services:

1. Value clients, guarantee equipment quality and answer clients’ questions anytime and anywhere.

2. Customizing machines according to clients’ inquiry , such as different design, different brand parts, different colors, more function,etc.

3. Engineers go to clients’ factory in time for installation , training and trial production .

4. Lifetime technical service support.

Packaging & Shipping :

Packing: standard exporting package

Shippingport: shanghai/Ningbo

If you are interested in any of our products or would like any support from us about yourfactory or any others, please feel free to contact us.

We are looking forward to building longwell and friendly business relationships with clients from all over the world.

Product detail pictures:
