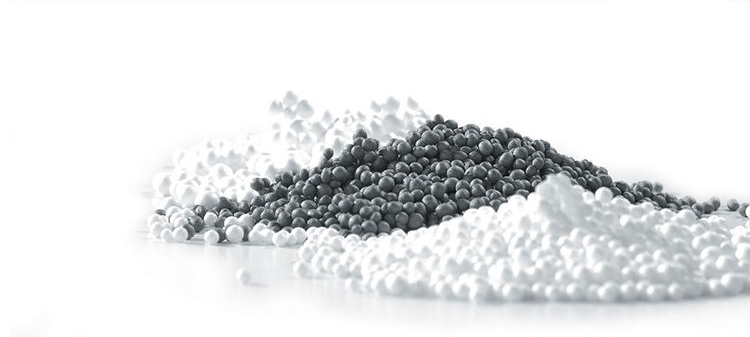

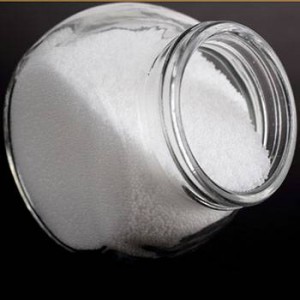

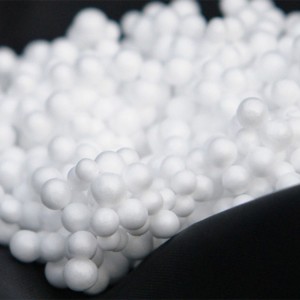

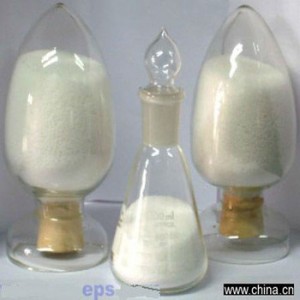

Expandable Graphite Eps Raw Material
Products Introduction
Expanded Polystyrene (EPS) is a light polymer. It is a foamed plastic which is added with a foaming agent by using a polystyrene resin and softened at the same time to generate a gas to form a hard closed cell structure. The uniformly closed cavity structure makes the EPS have small water absorption and good heat preservation. light weight and high mechanical strength Products made from foamed polystyrene are nearly ubiquitous, for example packing materials, insulation, and foam drink cups.

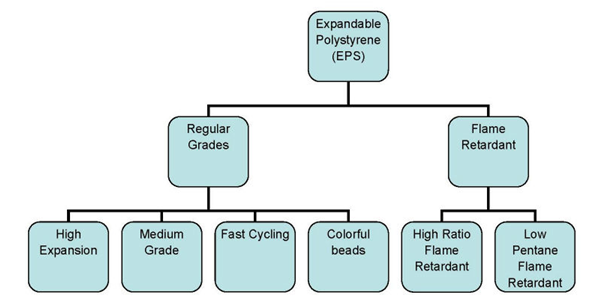

Classification
Technical Data
High Expansion Grade
| Specification | P301 | P302 | P303 | P401 | P501 | |
| Beads Size mm | 1.00-1.60 | 0.85-1.25 | 0.70-0.90 | 0.50-0.80 | 0.40-0.60 | |
| Vol.Cont % | 7.81 | 7.66 | 7.39 | 7.09 | 6.82 | |
| H2O % | 0.45 | 0.57 | 0.38 | 0.51 | 0.37 | |
| Avg.size mm | 1.25 | 1.01 | 0.81 | 0.63 | 0.53 | |
| Sieving ≥ 95% | 98 | 100 | 100 | 100 | 99.8 | |
| Result(g/l) | 12.5 | 13.5 | 14.33 | 18.67 | 20.2 | |
| Density | Max(I) | 11 | 13.11 | 14.5 | 18.67 | 20.2 |
| (g/l) | ||||||
| Range | Mix(I) | 12.5 | 14.28 | 17.67 | 20 | 25 |
| (g/l) | ||||||
Standard Grade
|
Specification
|
F301
|
F302
|
F303
|
F401
|
|
|
Beads Size mm
|
1.00-1.60
|
0.85-1.25
|
0.70-0.90
|
0.50-0.80
|
|
|
Vol.Cont %
|
6.85
|
6.8
|
6.66
|
6.27
|
|
|
H2O %
|
0.95
|
1.12
|
1.25
|
1.26
|
|
|
F.M %
|
≤0.10
|
≤0.10
|
≤0.10
|
≤0.10
|
|
|
Avg. size mm
|
1.32
|
1.01
|
0.8
|
0.63
|
|
|
PRE-EXPENSION DENSITY
|
12.0~14.0
|
14.0~16.0
|
15.0~18.0
|
18.0~25.0
|
|
|
Sieving ≥95%
|
95
|
95
|
95
|
95
|
|
|
Result (g/l)
|
13.67
|
15.18
|
17
|
23.22
|
|
|
DENSITY
|
Max(I) (g/l)
|
12.58
|
14.58
|
16.67
|
19
|
|
RANGE
|
Min(I) (g/l)
|
14
|
16
|
18
|
24.33
|
|
Oxygen Index
|
≥30
|
≥30
|
≥30
|
≥30
|
|
Application
Packing Box
