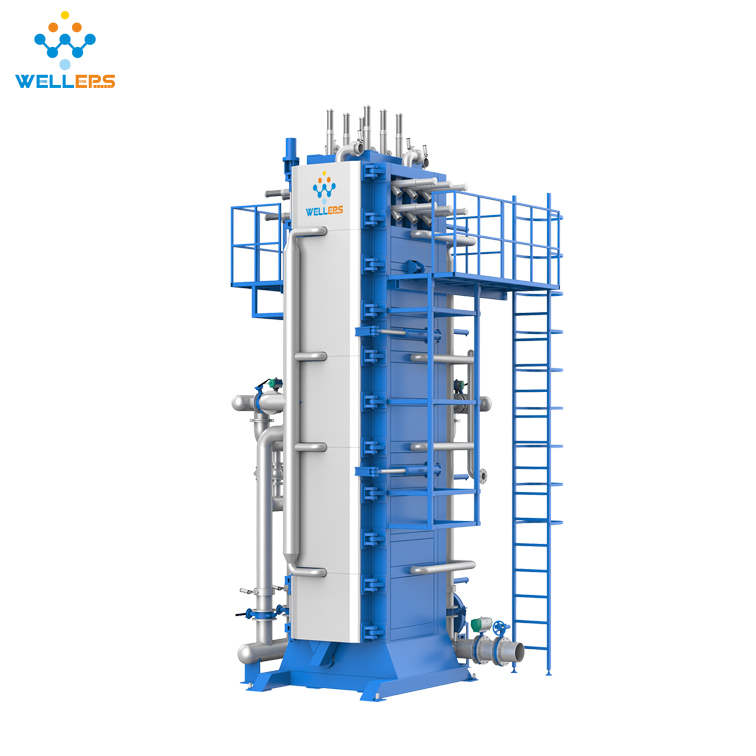

Vertical EPS Block Molding Machine

EPS block moulding machine have two type,Horizontal EPS block molding machine and Vertical EPS Block molding machine
Vertical EPS block molding machine as known as vertical EPS block moulding machine or EPS styrofoam machine.


Product Detail

FAQ

Product Tags

Machine Introduction

Vertical EPS Block Molding Machine Less floor occupied, with good drainage performance, reduced low moisture content of blocks. Adopts PLC and touch screen with easily operation; Equipped material level sensor to control the filling.The block cooling is controlled by foam pressure sensor; The whole procedure for filling, heating, cooling will automatically by PLC.

Main Features

1. Machine is made of high strength pipe and steel plate, all the steel is under heat treatment, sand blasting, spraying antirust painting, to increasing strength, not rust, to ensure machine operation is stable and long service life.

2. Machine adopts advanced processing technology and better pipe structure design, greatly improving the production efficiency.

3. Machine use unique heating process and efficient vacuum with condensing system, has strong steam penetrating power and energy saving design. Produced blocks have excellent cohesiveness, low moisture content, to ensure every customer’s satisfy.

4. Adopt PLC and touch screen control system, equipped with material level sensor can realize automatic control of feeding, equipped with foam pressure sensor control cooling time automatically.

5. Machine use good quality electrical, pneumatic components, valves and other parts. And the parts with international standard, so customer is easy to find replacement at local.

6. Machine adopts hydraulic pressure station to be the center control system. Use hydraulic open door, ejector de-mould and locking, guarantee the machine running smoothly, stable performance.

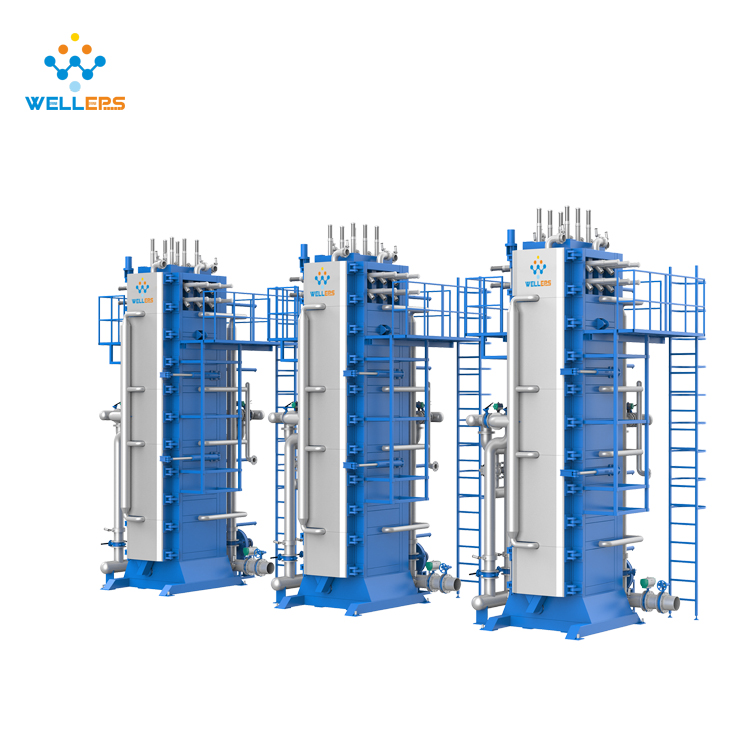

EPS block molding machine

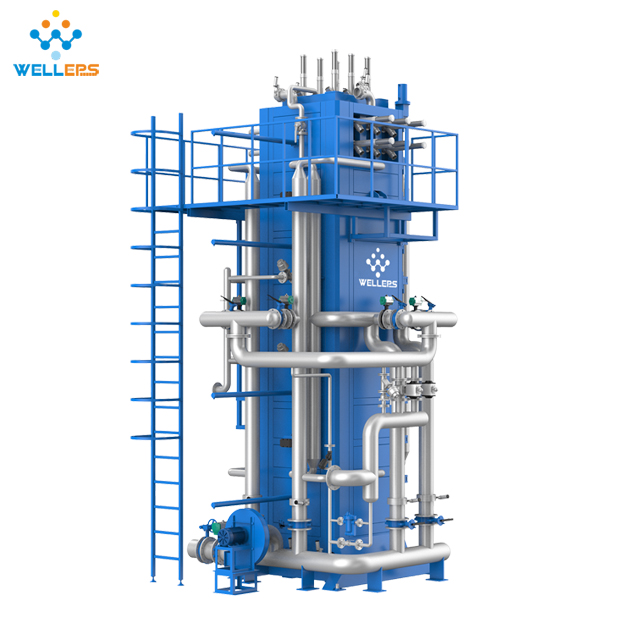

Eps Foam Block Machine

Technical Data

Item  Type
SPB200TZ SPB300TZ SPB400TZ SPB600TZ
Mould Cavity Size mm 2050*1240-940*1030 3060*1240-940*1030 4080*1240-940*1030 6100*1240-949*1030
Block Size mm 2000*1200-900*1000 3000*1200-900*1000 4000*1200-900*1000 6000*1200-900*1000
Steam Entry DN150 DN150 DN150 DN200
 Consumption 25-45kg/cycle 45-65kg/cycle 60-85kg/cycle 95-120

kg/cycle

Pressure 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
 Compressed Air  Entry DN40 DN40 DN50 DN65
Consumption 1.5-2m3/cycle 1.8-2.2m3/cycle 2-2.5m3/cycle 2-3m3/cycle
Pressure 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa 0.6-0.8MPa
Cooling Water  Entry DN40 DN40 DN40 DN40
Consumption 0.2-0.4m3/cycle 0.4-0.6m3/cycle 0.6-0.8m3/cycle 0.8-1m3/cycle
 Pressure 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa 0.4-0.6MPa
Drainage Vacuum drain Φ100mm Φ125mm Φ125mm Φ125mm
 Steam vent Φ100mm Φ100mm Φ200mm Φ200mm
 Condensate Φ150mm Φ150mm Φ150mm Φ150mm
Blower outlet Φ100mm Φ100mm Φ150mm Φ150mm
Throughput 15kg/m3 4min/cycle 6min/cycle 7min/cycle 8min/cycle
Power   23.75Kw 26.75Kw 28.5Kw 37.5Kw
Overall Dimension L*W*H 5700*4000*3300 7200*4500*3500 11000*4500*3500 12600*4500

*3500

Weight   8000kg 9500kg 15000kg 18000kg
Room Height Required   6000mm 6000mm 6000mm 6000mm



Case

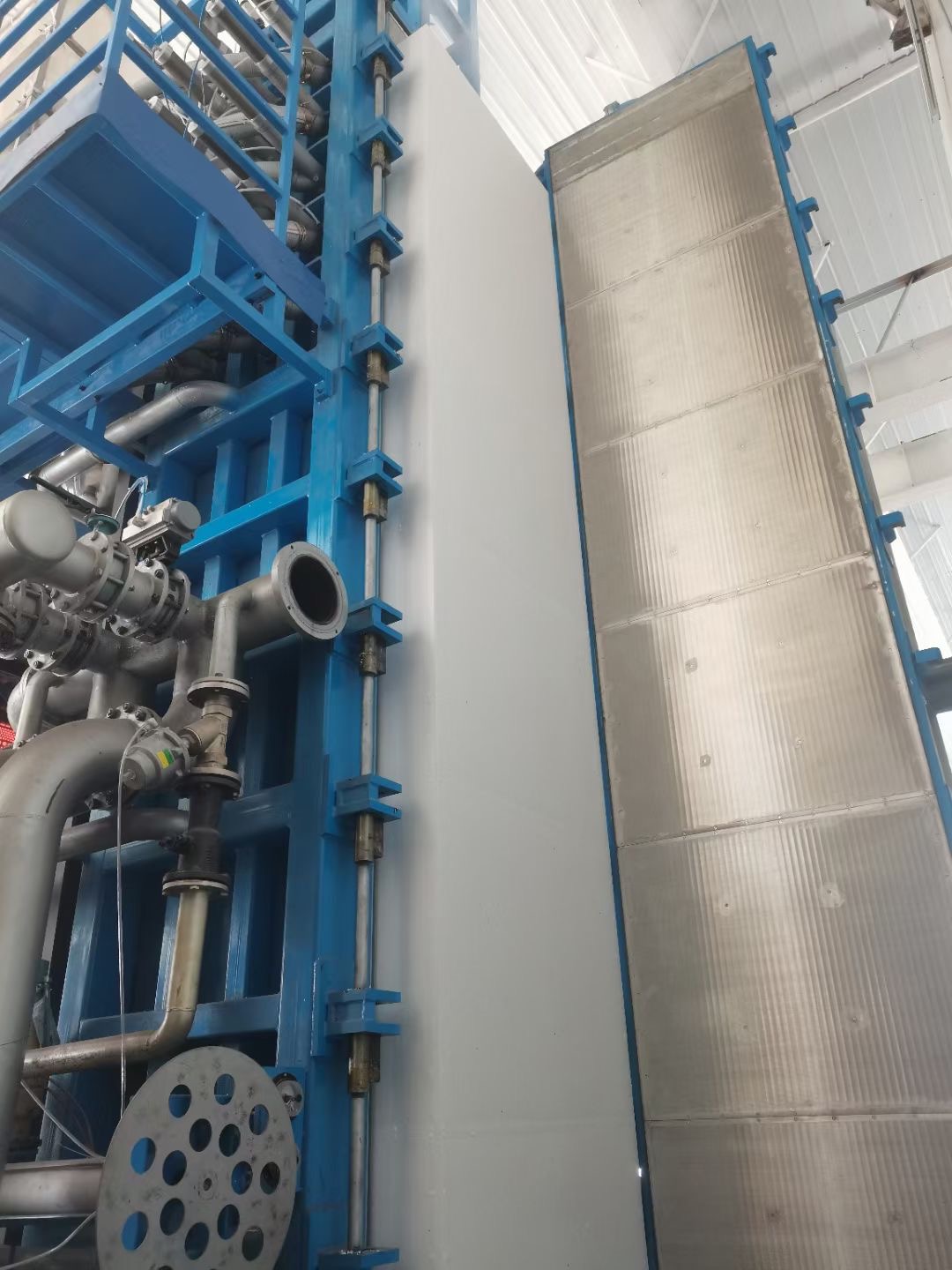

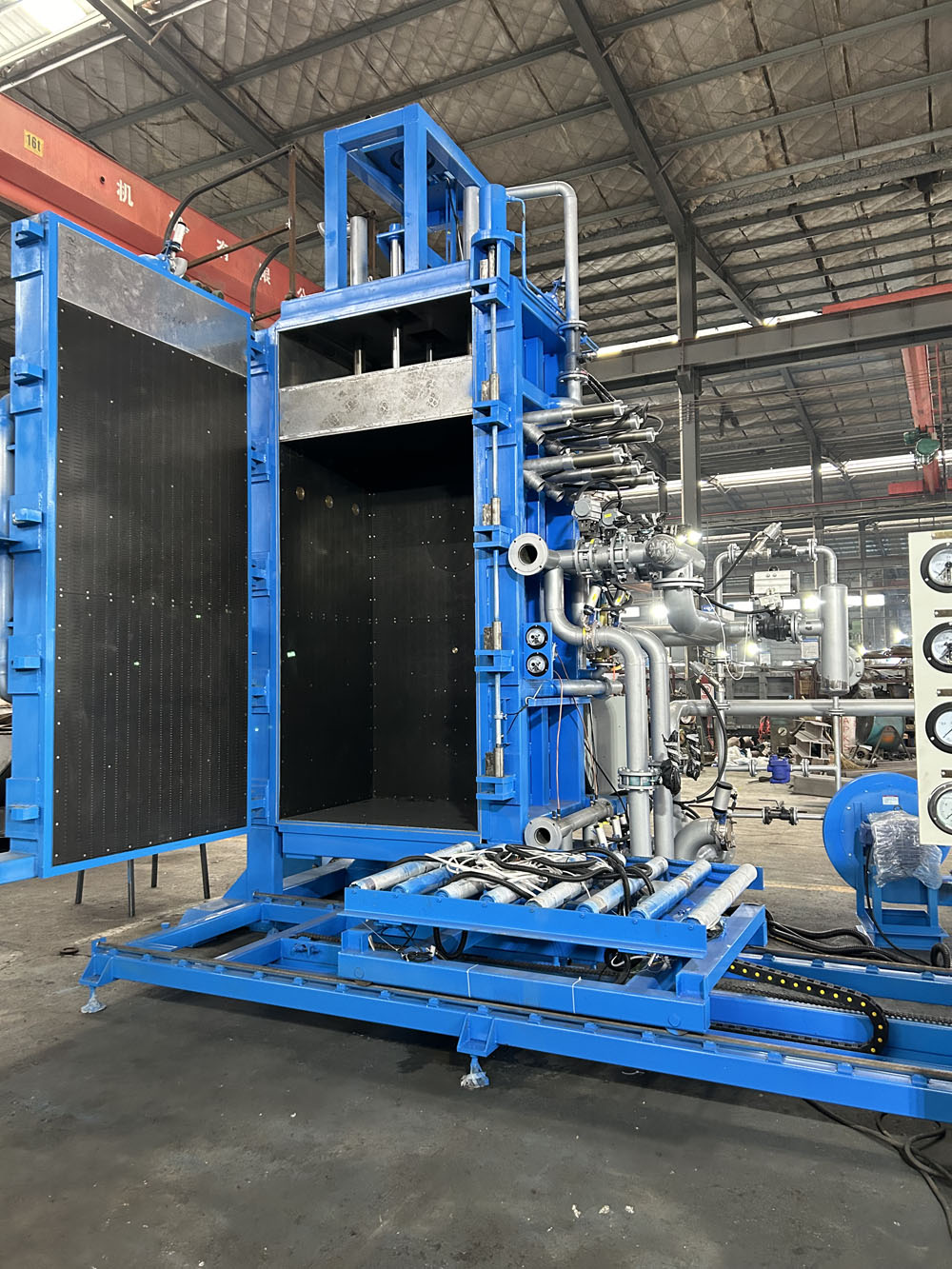

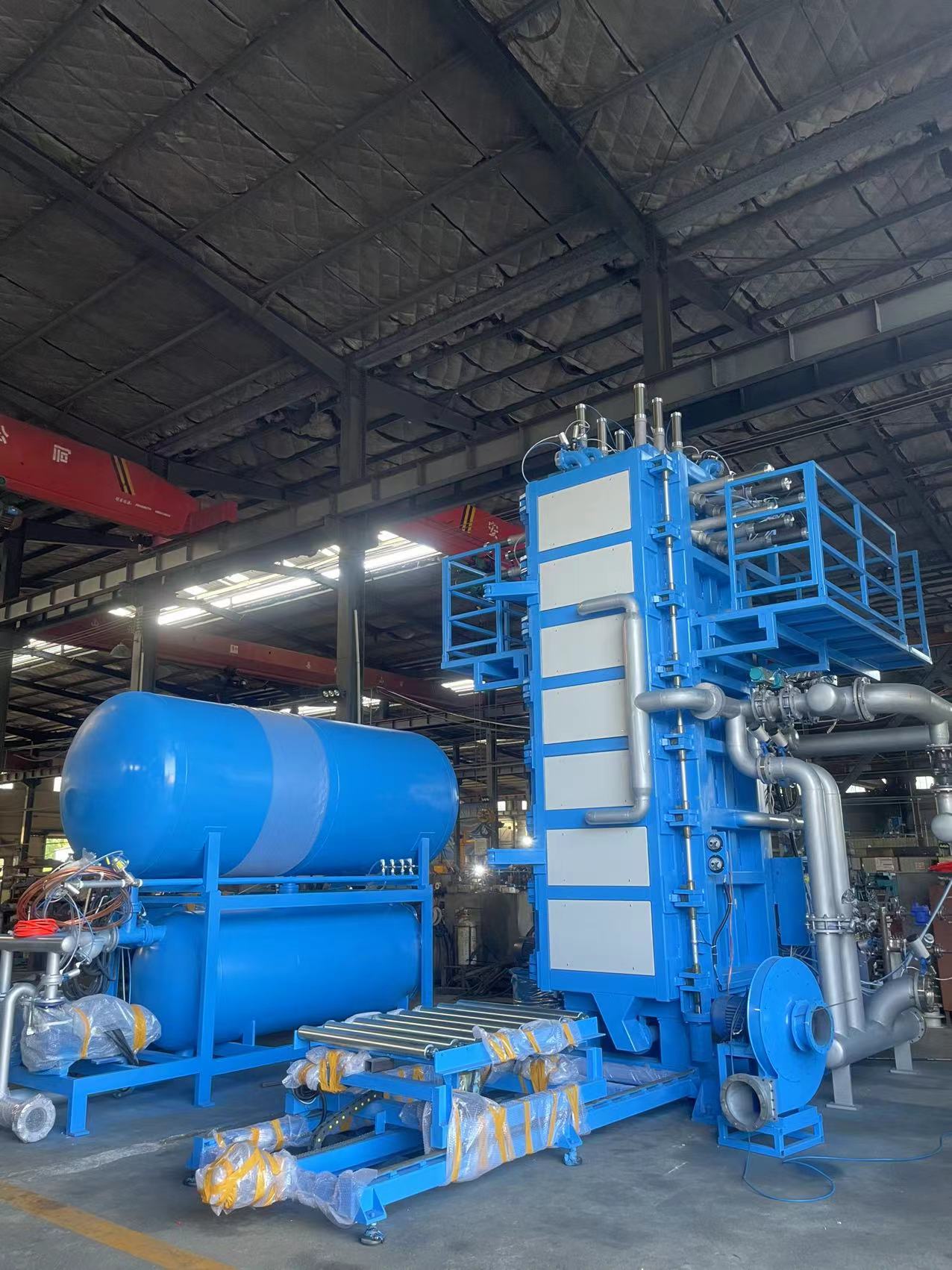

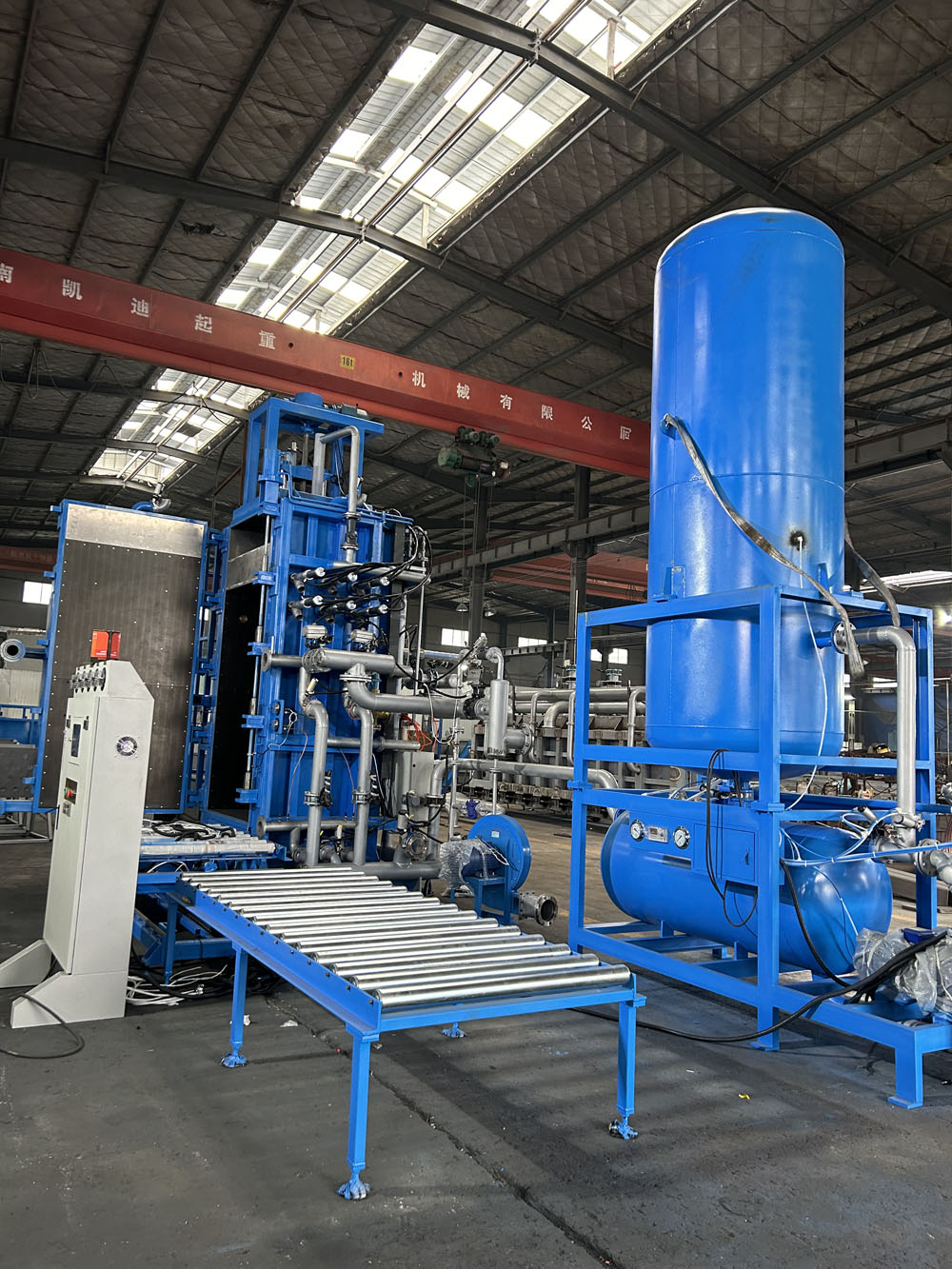

Vertical EPS Block Molding Machine run in customer

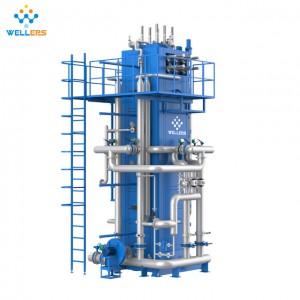

Vertical EPS Block molding machine
EPS Block molding machine
EPS block moulding machine

Why vertical EPS block molding machine?

Less floor occupied

good drainage performance

reduced low moisture content of blocks

Better flow steam control & lower steam consumption

heat exchanger for saving steam

Application

Products of Vertical EPS Block Molding Machine

eps block molding machine
