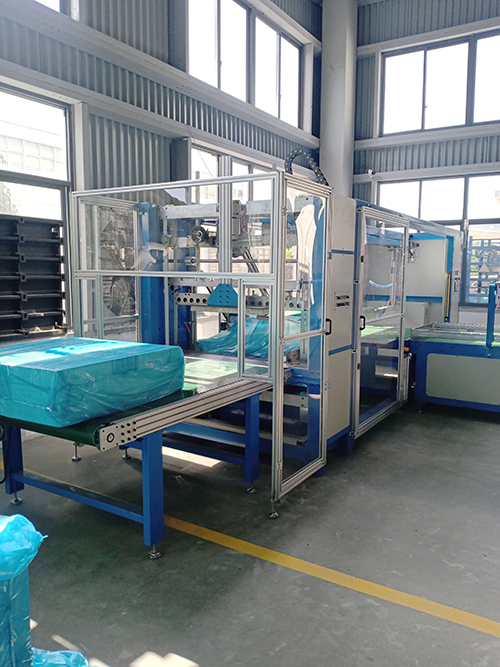

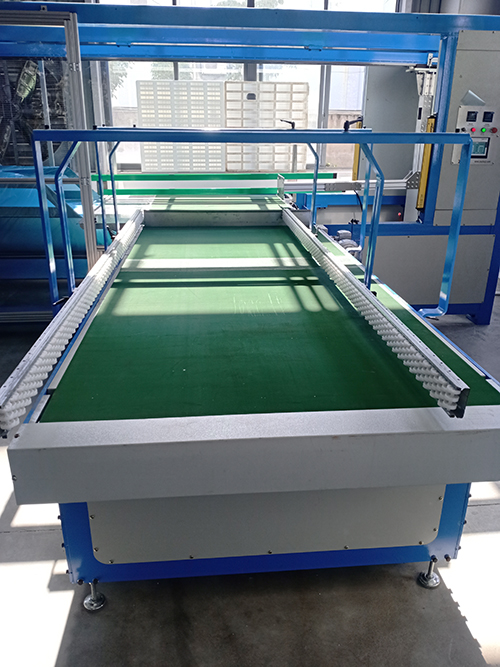

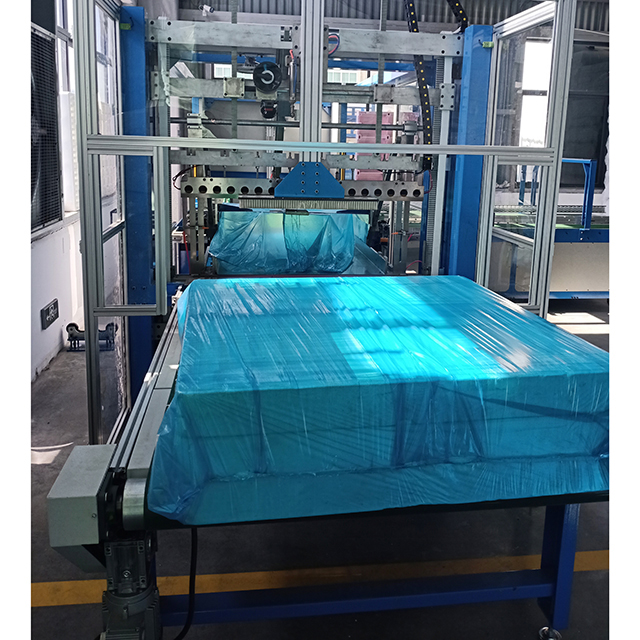

EPS Foam Sheets Packing Machine
Products Introduction
The machine adopts PLC programmable industrial controller and computer touch screen to complete the automatic cycle process of pushing, winding, packaging, sealing and cutting of the product to the working position
The machine has stable performance, simple operation, no noise and low power consumption;
The machine can be matched with various EPS products and equipment, packaging various specifications of EPS products
Main Advantage

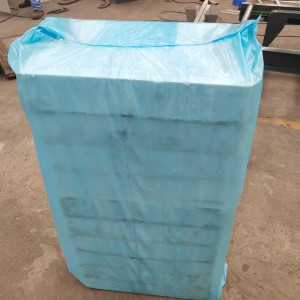

1 It is used to pack EPS shaping product. It is fast packing and saves film.
2 The machine is suitable for various kind of dimensions.
3 It is protected by fences and raster, to insure safety.
4 It is full automatic, controlled by Siemens PLC and touch screen.
5 Frequently-used specification can be record and easy to load.
6 Equipped with malfunction warning system, easy to remove problem.
Technical Data
| Type | SPM-3560 | SPM-5080 | SPM-6090 |
| Length (mm) | 2,000 | 2,000 | 2,000 |
| Width (mm) | 350-600 | 500-800 | 600-900 |
| Leight (mm) | 300-600 | 300-600 | 300-600 |
| Speed(Second/Package) | 12-14 | 15-16 | 17-18 |
| Power(KW) | 4.5 | 4.5 | 4.5 |
| Overall size (mm) | 8,300X1,800X2,500 | 8,300X2,000X2,500 | 8,300X2,200X2,500 |

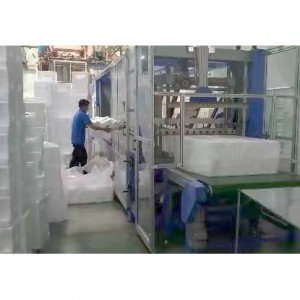

Applications
