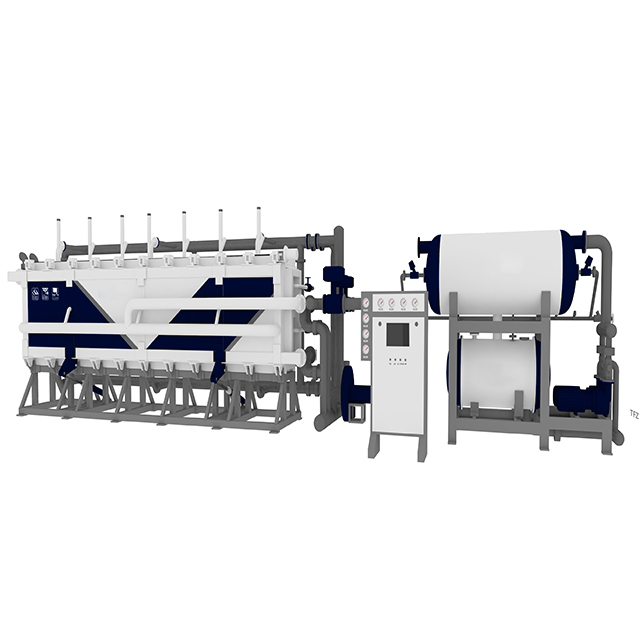

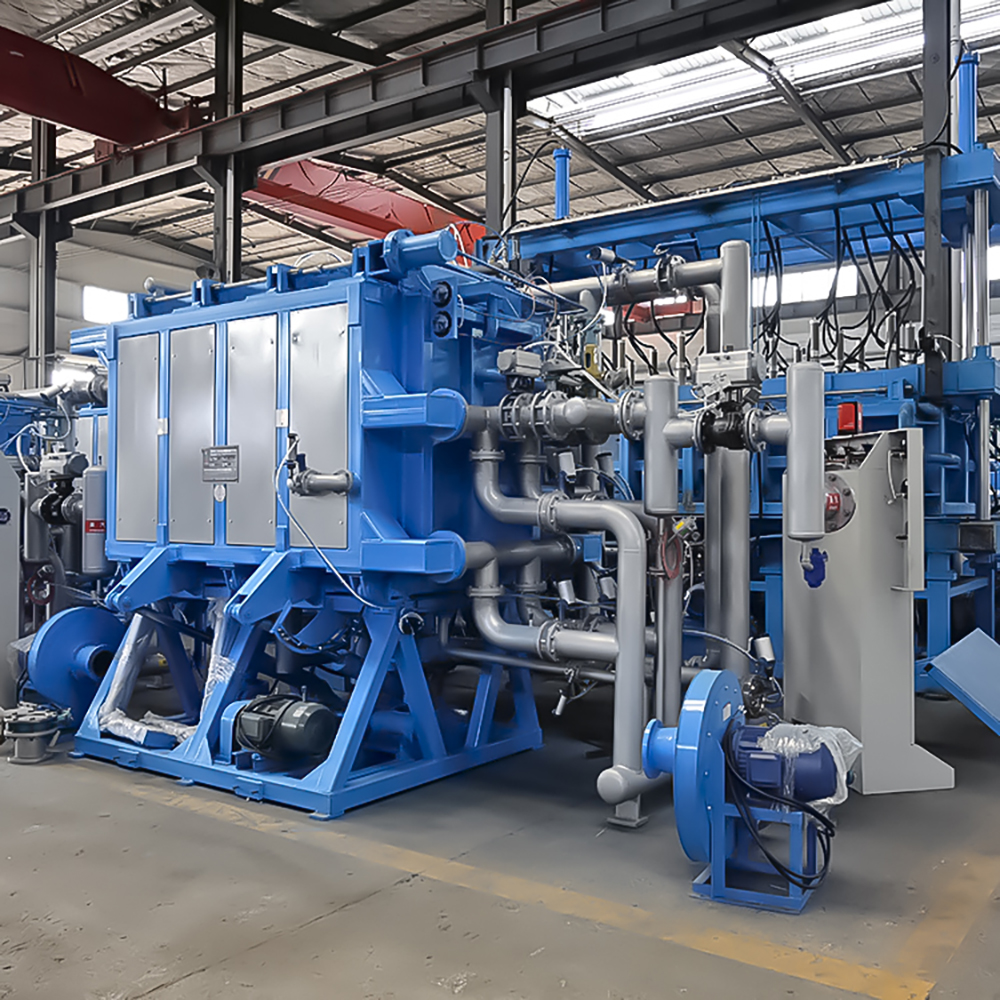

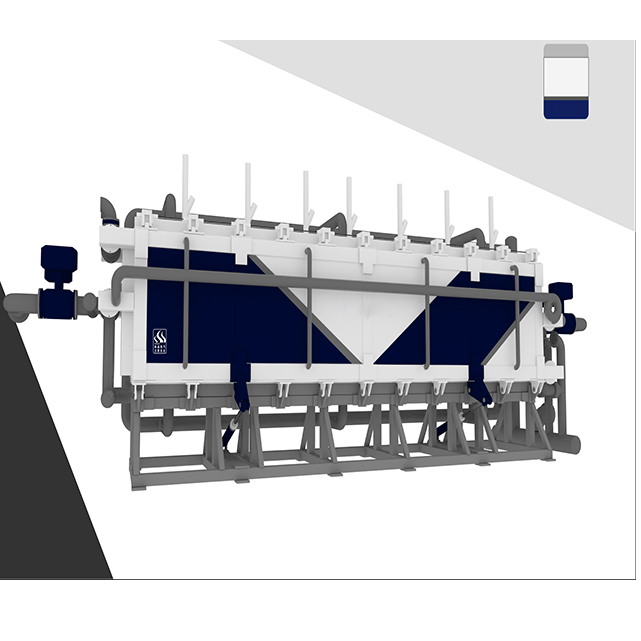

SPB200TZ-600TZ EPS Block Molding Machine
Machine Introduction

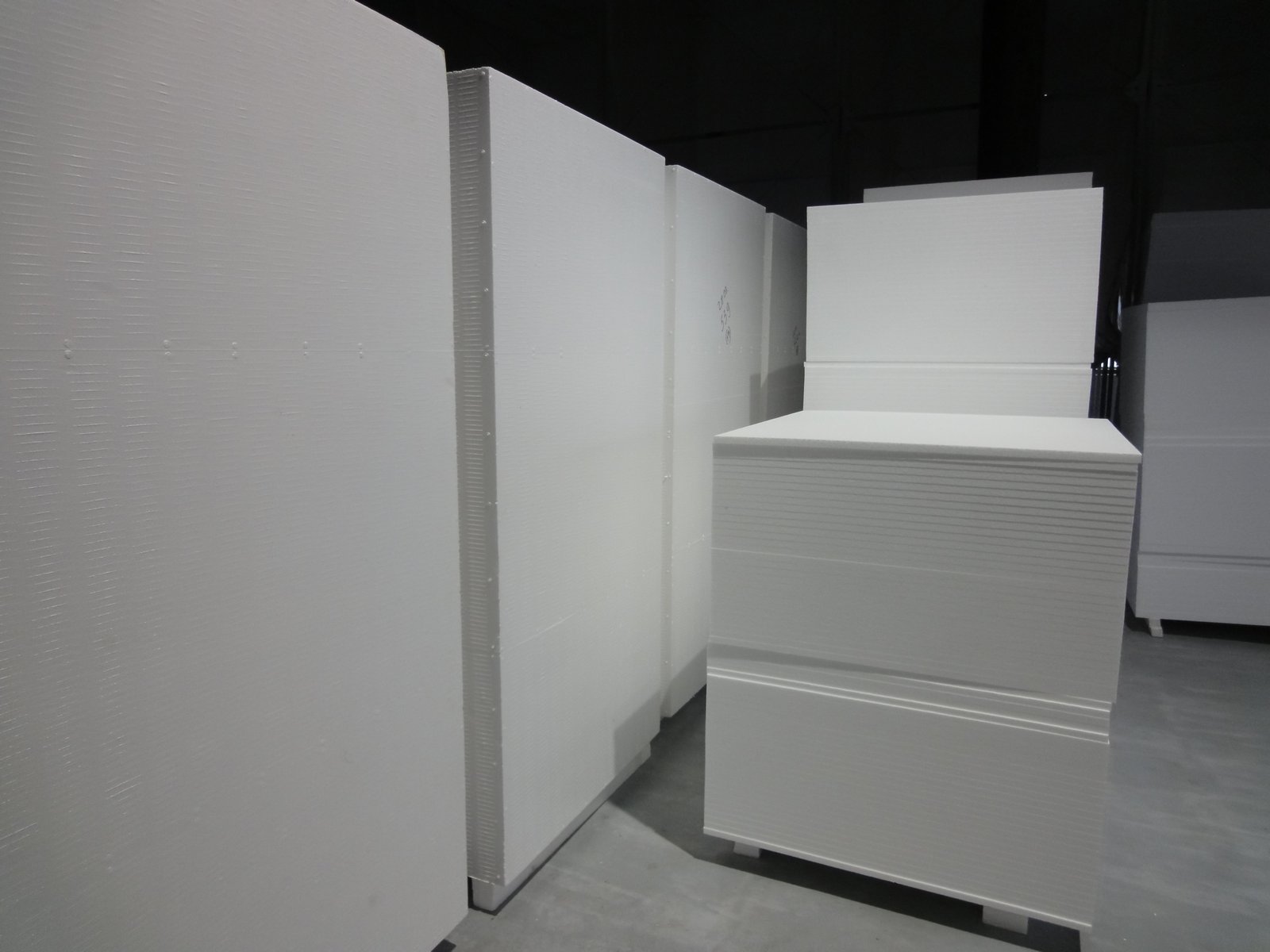

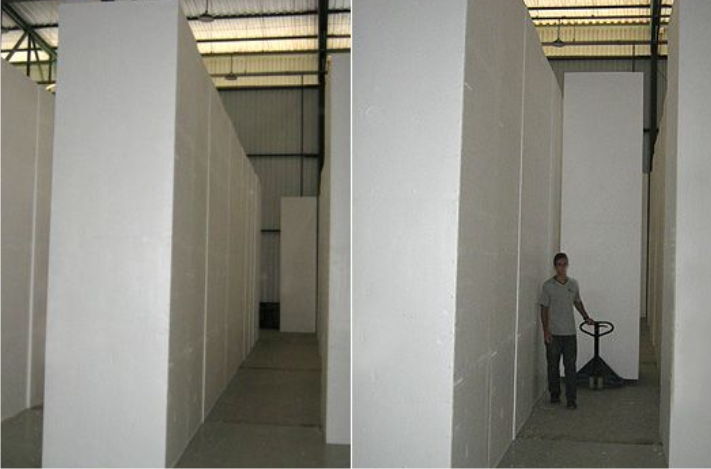

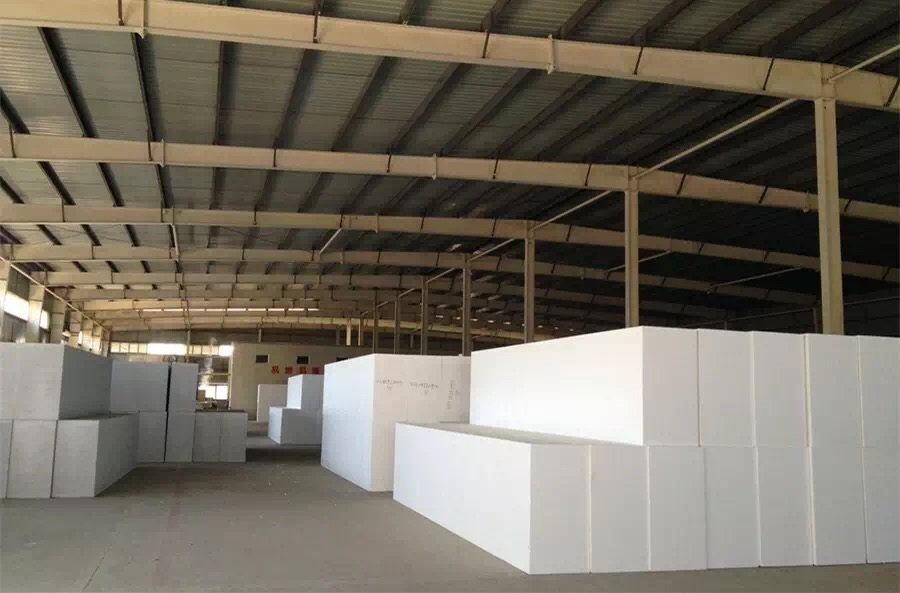

EPS Block Molding Machine is used to make EPS blocks, then cut to sheets for house insulation or packing. Popular products made from EPS sheets are EPS sandwich panels, 3D panels, inner and outer wall insulation panels, glass packing, furniture packing etc
Main Features
1. EPS Block Molding Machine is made of high strength pipe and steel plate, all the steel is under heat treatment, sand blasting, spraying antirust painting, to increasing strength, not rust, to ensure machine operation is stable and long service life.
2. EPS Block Molding Machine adopts advanced processing technology and better pipe structure design, greatly improving the production efficiency.

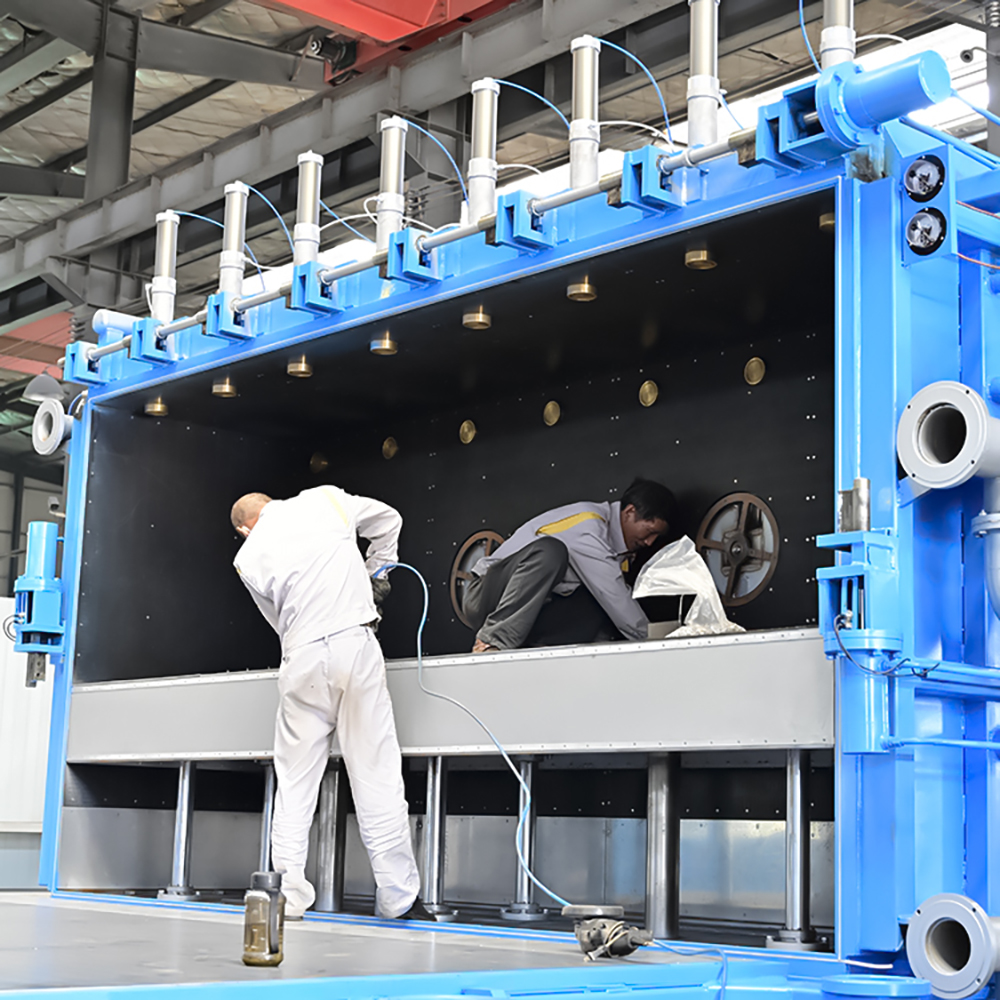

3. EPS Block Molding Machine use unique heating process and efficient vacuum with condensing system, has strong steam penetrating power and energy saving design. Produced blocks have excellent cohesiveness, low moisture content, to ensure every customer’s satisfy.
4. Adopt PLC and touch screen control system, equipped with material level sensor can realize automatic control of feeding, equipped with foam pressure sensor control cooling time automatically.
5. EPS Block Molding Machine use good quality electrical, pneumatic components, valves and other parts. And the parts with international standard, so customer is easy to find replacement at local.
6. EPS Block Molding Machine adopts hydraulic pressure station to be the center control system. Use hydraulic open door, ejector de-mould and locking, guarantee the machine running smoothly, stable performance.
Technical Data
Item | Type | ||||
SPB200TZ | SPB300TZ | SPB400TZ | SPB600TZ | ||
Mould Cavity Size | mm | 2050*1240-940*1030 | 3060*1240-940*1030 | 4080*1240-940*1030 | 6100*1240-949*1030 |
Block Size | mm | 2000*1200-900*1000 | 3000*1200-900*1000 | 4000*1200-900*1000 | 6000*1200-900*1000 |
Steam | Entry | DN150 | DN150 | DN150 | DN200 |
Consumption | 25-45kg/cycle | 45-65kg/cycle | 60-85kg/cycle | 95-120kg/cycle | |
Pressure | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa | |
Compressed Air | Entry | DN40 | DN40 | DN50 | DN65 |
Consumption | 1.5-2m3/cycle | 1.8-2.2m3/cycle | 2-2.5m3/cycle | 2-3m3/cycle | |
Pressure | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa | 0.6-0.8MPa | |
Cooling Water | Entry | DN40 | DN40 | DN40 | DN40 |
Consumption | 0.2-0.4m3/cycle | 0.4-0.6m3/cycle | 0.6-0.8m3/cycle | 0.8-1m3/cycle | |
Pressure | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa | |
Drainage | Vacuum drain | Φ100mm | Φ125mm | Φ125mm | Φ125mm |
Steam vent | Φ100mm | Φ100mm | Φ200mm | Φ200mm | |
Condensate | Φ150mm | Φ150mm | Φ150mm | Φ150mm | |
Blower outlet | Φ100mm | Φ100mm | Φ150mm | Φ150mm | |
Throughput | 15kg/m3 | 4min/cycle | 6min/cycle | 7min/cycle | 8min/cycle |
Power | 23.75Kw | 26.75Kw | 28.5Kw | 37.5Kw | |
Overall Dimension | L*W*H | 5700*4000*3300 | 7200*4500*3500 | 11000*4500*3500 | 12600*4500*3500 |
Weight | 8000kg | 9500kg | 15000kg | 18000kg | |
Room Height Required | 6000mm | 6000mm | 6000mm | 6000mm |
