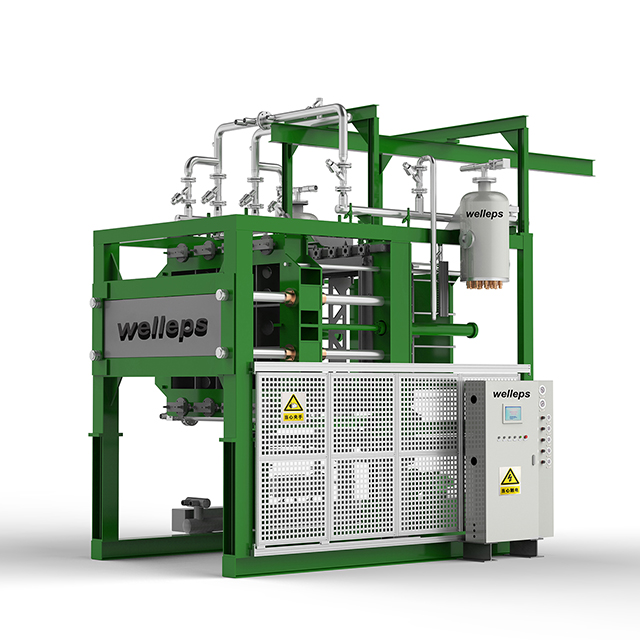

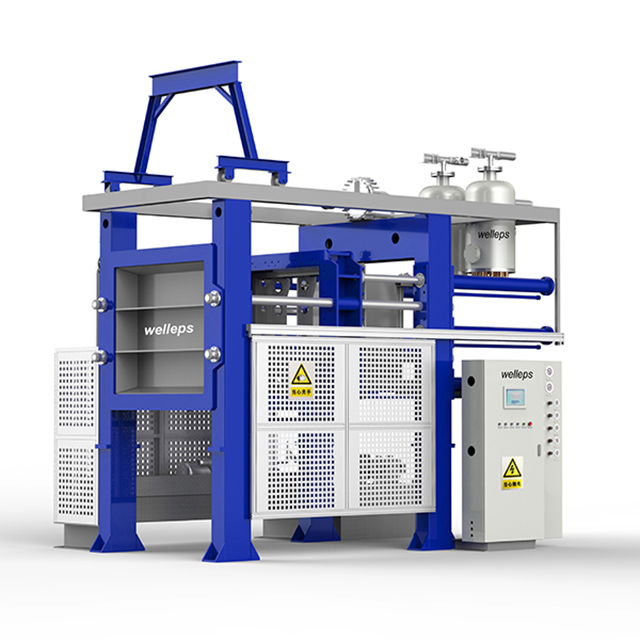

EPP Expanded Polypropylene Foam Yoga Roller Moulding Production Line Machinery
Main Advantage
1.Solid steel construction processed by high temperature annealing, heat treatment, surface de-rusted by sandblast and sprayed by anti-corrosive paint.
2.Control system adopts Japan PLC and English touch screen for easy operating and fully automatic producing.
3.High quality and stable machines parts, like German Burkert angle-seat valves.
4.Energy saving by well-designed machine size, pipe lines to realize fast steam pressure increasing and decreasing.
5.High flow hydraulic drive with double hydraulic cylinder, which makes machine running steadily and locking tightly.
6.The machine can be equipped with a build-in vacuum system, and also there is an access to center vacuum system.
7.Double feeding chamber for fast feeding to shorten the cycle time.
8.Balance valve for stable steam controlling.
9.Extended zinc coated machine legs are optional for customer for installing machine on special ground.
10.Machine legs and platform is optional.
Machine Introduction
EPP(Expanded Polypropylene) is a kind of high performance crystalline polymer/gas composite materials, with its excellent performance to become the fastest growing environmental protection and insulation materials.
1.Energy absorption: because the EPP products have special bubble pore structure, it can absorb the energy from outside efficiently, and can anti-press very well.
2.Recycling: EPP products good flexibility can be used repeatedly, not easily broken.

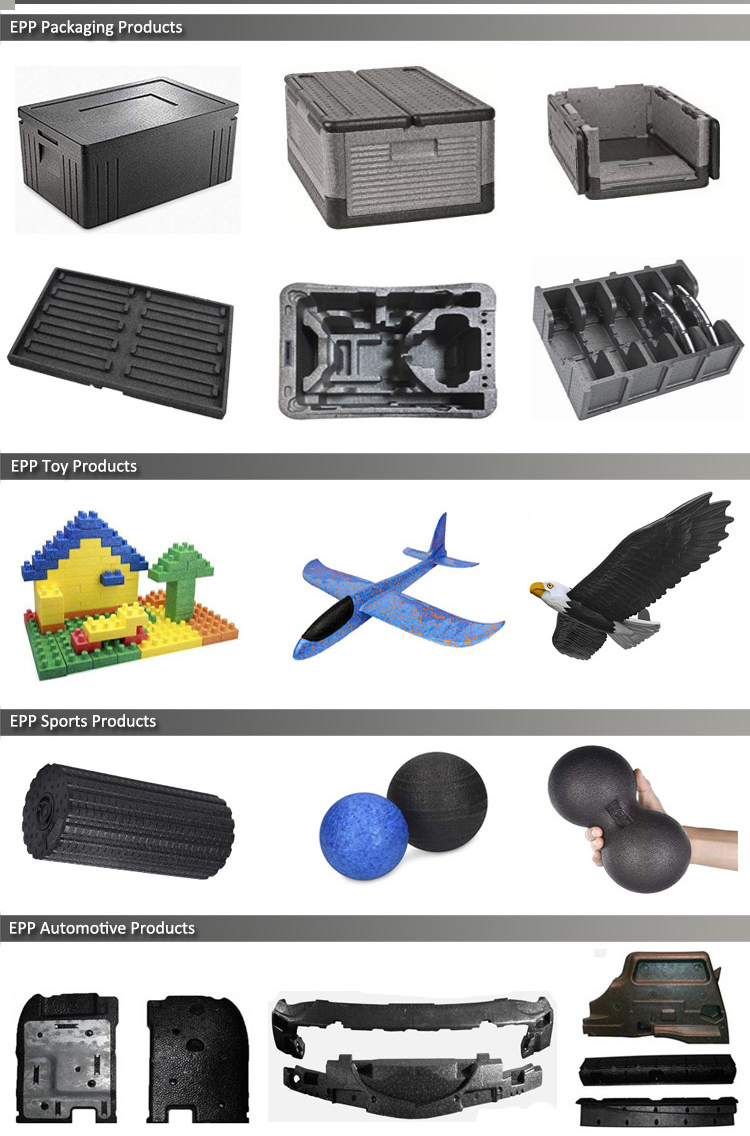

EPP products widely used in automobile industry, such as car bumper, car side shockproof core, the door, advanced safety car seat, etc.
Technical Data
| Item | Unit | Type/Technical Data | |||
| PSZ0608EP | PSZ1214EP | PSZ1218EP | |||
| Mould Dimension | mm | 800*600 | 1500*1300 | 1950*1300 | |
| Max.Product Dimension | mm | 650*450*330 | 1400*1200*330 | 1800*1200*330 | |
| Minimum Mould Thickness | mm | 200 | 220 | 220 | |
| Stroke | mm | 210-1450 | 210-1450 | 210-1450 | |
| Mounting Interface | Raw material | / | DN40 | DN40 | DN40 |
| Steam | / | DN80 | DN100 | DN100 | |
| Compressed air | / | DN50 | DN65 | DN65 | |
| Cooling water | / | DN80 | DN80 | DN80 | |
| Drainage | / | DN150 | DN150 | DN150 | |
| Ventilation | / | DN50 | DN80 | DN80 | |
| Consumption | Steam | Kg/cycle | 5-10 | 6-13 | 10-15 |
| Compressed air | m3/cycle | 1 | 1.3 | 1.5 | |
| Cooling water | Kg/cycle | 50-80 | 60-100 | 150-180 | |
| Connected load | Hydralic motor | Kw | 5.5 | 7.5 | 7.5 |
| Vacuum pump | Kw | 5.5 | 5.5 | 7.5 | |
| Appr.machine weight | Kg | 4700 | 5700 | 7500 | |
| Overall dimension | mm | 4500×1300×2800 | 4600×2140 ×3100 | 5000×2450 ×3500 | |

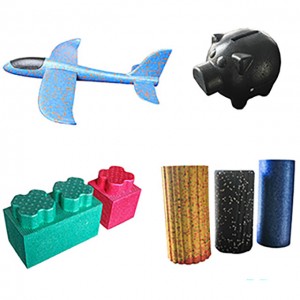

Applications
