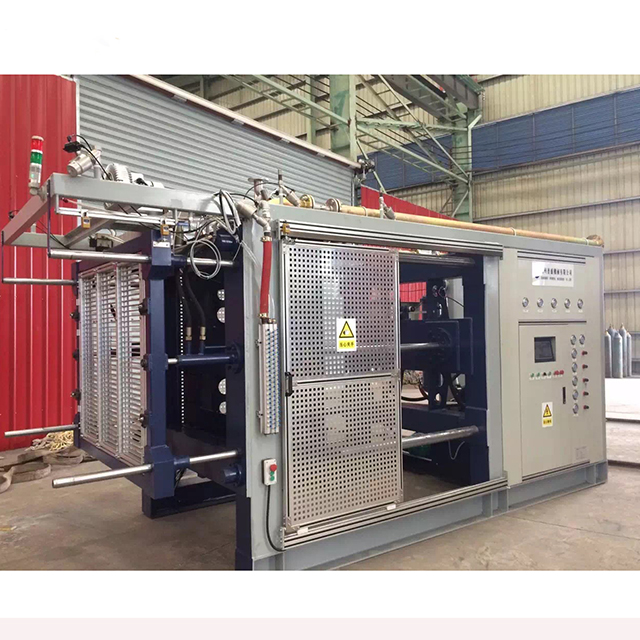

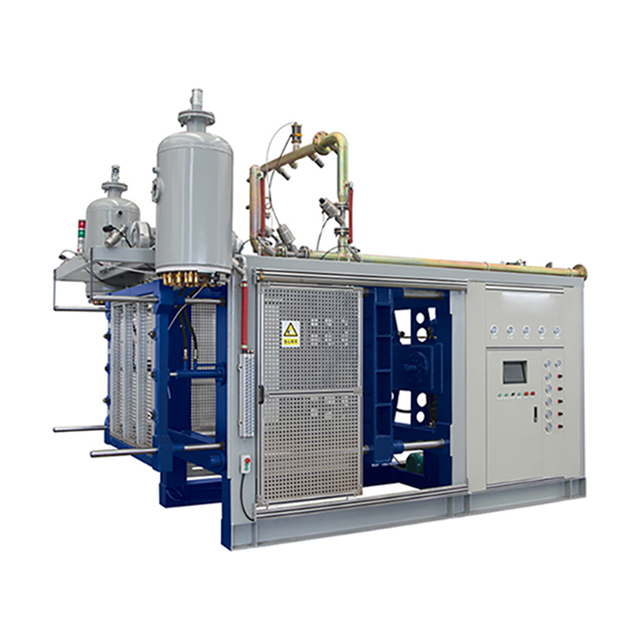

Epp expanded polypropylene airplane models molding machine
product description

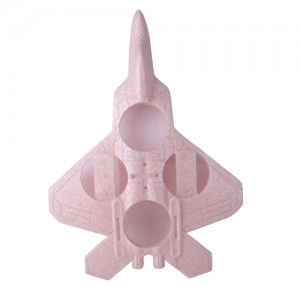

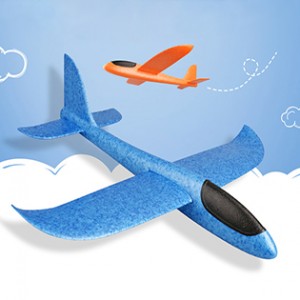

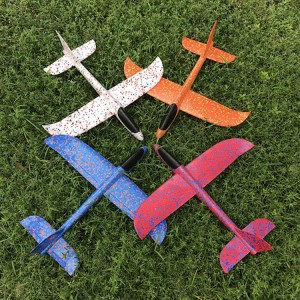

Epp expanded polypropylene airplane models molding machine is used to produce all kinds of valuables EPP packaging (such as notebook computers, liquid crystal displays, precision instruments), EPP toys (airplane models), EPP high-end car parts (such as EPP bumper, EPP toolbox, EPP sunshade, etc.), EPP sporting goods (such as Surfboard, helmet, etc.).
Main Features
1.Equipment body use the high strength steeel welded together, after the tempering process, sandblasting processing, to ensure the machne have strong structure, not get rust and increae the machine's working life.
2.Equipment adopts Mitsubishi PLC(programmable controller) and touch screen control. The whole production process is working automatically.
3.Machine with high-pressure feed system, feeding mould fast,machine can install 36 pcs filling guns.
4.Machine with wacuum system, it can make the cycle time shorter ,cooling much faster ,and reduce the moisture content of products, so that products moisture content of 8% or even less.
5.Machine use double cylinder for the ejector frame, action smoothly and work coordination, to ensure not damage the products when ejecting.
6.Hydraulic system with large flow hydraulic pressure drive, move fast, lock mouled even, low noise and energy saving,etc.
Technical Data
| Item | PSZ100T | PSZ140T | PSZ160T | PSZ175T | |
| Mould Dimension | 1000*800 | 1400*1200 | 1600*1350 | 1750*1450 | |
| Max Product Dimension | 850*650*330 | 1220*1050*330 | 1420*1200*330 | 1550*1250*330 | |
| Stroke | 210-1360mm | 270-1420mm | 270-1420mm | 270-1420mm | |
| Steam | Entry | DN65 | DN80 | DN80 | DN80 |
| Consumption | (12-15T)Steam of 1T material | ||||
| Cooling Water | Entry | DN65 | DN65 | DN65 | DN65 |
| Consumption | 45-130kg/cycle | 50-140kg/cycle | 50-140kg/cycle | 55-190kg/cycle | |
| Compressed Air | Entry | DN40 | DN40 | DN50 | DN50 |
| Consumption | 1.3m3/cycle | 1.4m3/cycle | 1.4m3/cycle | 1.5m3/cycle | |
| Vacuum Pump Capacity | 165m3/h | 250m3/h | 280m3/h | 280m3/h | |
| Power | kw | 11kw | 14.5kw | 16.5kw | 16.5kw |
| Overall Dimension | L*W*H (mm) | 4500*1640*2700 | 4600*2140*3100 | 5000*2300*3400 | 5000*2450
*3500 |
| Weight | kg | 4100 | 4900 | 5700 | 6000 |
| Cycle Time | s | 60-90s | 60-150s | 100-180s | 100-180s |
| Note:We can make Epp expanded polypropylene airplane models molding machine according to customer requirement. | |||||
Our Service
1.Value clients, guarantee equipment quality and answer clients' questions anytime and anywhere.
2.Customizing machines according to clients' inquiry , such as different design, different brand parts, different colors, more function,etc.
3.Engineers go to clients' factory in time for installation , training and trial production .
4. More spare parts are given to clients for free to ensure the factory working without suddenly stop.
5. 1 year free warranty, Lifetime technical service support.
