Energy saving eps foam system recycle styrofoam machine

Energy saving eps foam system recycle styrofoam machine Featured Image
  • Energy saving eps foam system recycle styrofoam machine
  • Energy saving eps foam system recycle styrofoam machine
  • Energy saving eps foam system recycle styrofoam machine

1.Unique design,simple structure,multifunction,and easy to operate.

2.Multi-purpose,it can crush and recycle agglomerate materials,reclaimed materials and Waste materials.

3.TYPE C applies unique dust beads separating agency, it can separate the dust from the beads,which ensure the beads in good condition.


Download as PDF

Product Detail

FAQ

Product Tags

Our EPS recycling system consists of Crusher, Deduster and Mixer.

The crushing machine smashes wasted EPS products or

EPS scraps into granules, then 1t goes through the de-duster to sieve and remove the dust.

After sieving and de­dusting, the recycling material is mixed with virgin material according to the pre defined proportion

and can be used in both Shape and Block Molding Machines

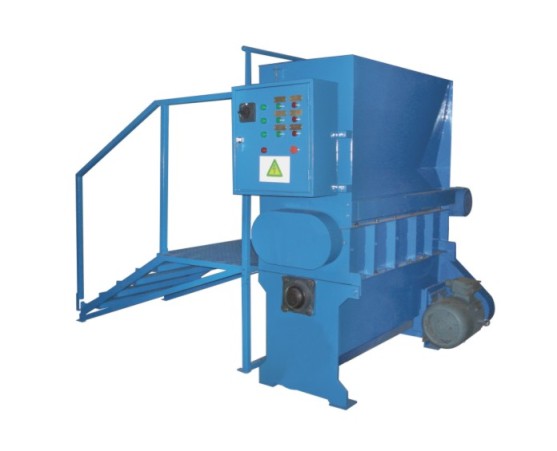

eps crusher

Item FS300 FS320
Capacity 25-30m3/h 25-30m3/h
Diameter of Beads 4-12mm 4-12mm
Connected Load 14Kw 14Kw
Overal Dimension 1950*817*1321mm 1840*680*1900mm
Weight 850Kg 850Kg

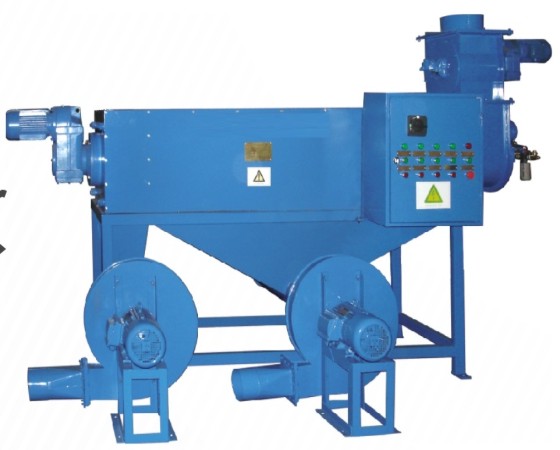

eps De-duster

Item Type Unit Data
Capacity PSFL-30 m3/h 25-30
Connected Load 　 KW 6.27
Overal Dimension 　 L*W*H 4220*2500*4500MM
Weight 　 kg 600

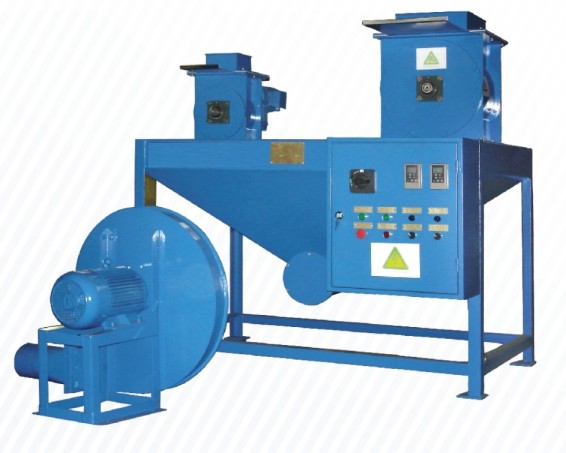

eps mixer

Item Type Unit Data
Capacity PSH60 m3/h 55-100
Connected Load 　 KW 5.67
Overal Dimension 　 L*W*H 3050*2050*5700MM
Proportion 　 　 6%-25%

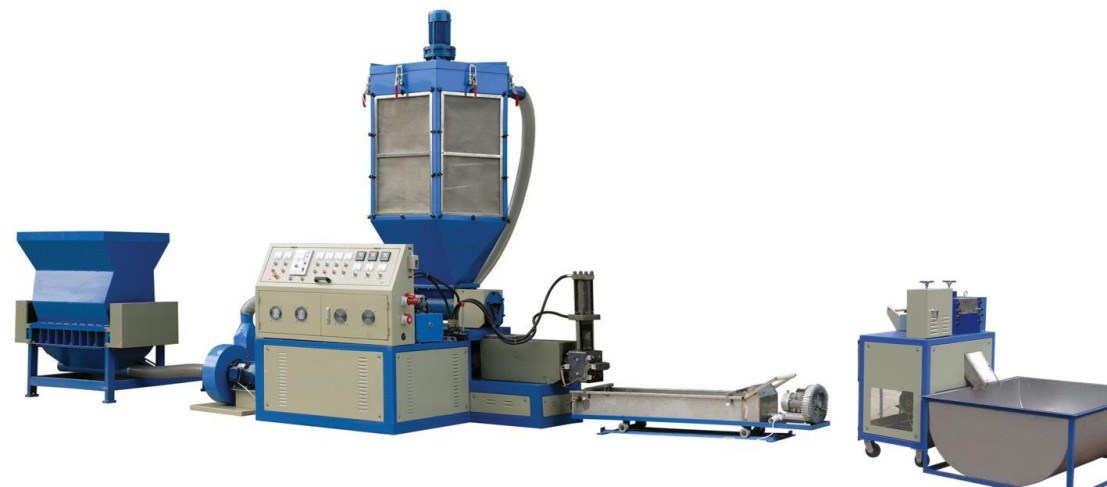

EPS polystyrene recycling machine
