Energy saving 50% central vacuum energy system

Central Vacuum Energy System, EPS/EPP-specific industry-designed vacuum system can perfectly solve your worries.High vacuum efficiency and stable vacuum degree. Long service life, simple maintenance and low maintenance cost. Frequencyconversion control saves more than 50% energy than ordinary water ring vacuum pumps.


Product Detail

FAQ

Product Tags

Main Features

Central Vacuum Energy System, EPS/EPP-specific industry-designed vacuum system can perfectly solve your worries.

 1. High vacuum efficiency and stable vacuum degree. Long service life, simple maintenance and low maintenance cost.
 2. Frequencyconversion control saves more than 50% energy than ordinary water ring vacuum pumps.
 3. Joseph Supporting the EPS industry dedicated tower condensing system independently developed and designed , the entire system is hot-dip galvanized, energy-saving and efficient, truly maintenance-free and maintenance-free, and completely solves the problem of short service life and difficult vacuum maintenance of ordinary towers.

Product benefits

1. Energy saving: the double-stage oil-free vacuum pump can save 40%-60% energy than the traditional water ring vacuum pump, with high efficiency and low power consumption. The efficiency is 1.8 times higher than the water ring vacuum pump. A year of rapid return of the extra cost.

2. Environmental protection: a large number of water ring vacuum pump and oil seal vacuum pump used in the market produce a large number of sewage and waste oil, cause pollution to the environment, while our oil-free double stage vacuum pump using special technology, it’s with no pollution to the environment.

3. High-end: we adhere to the high-end quality line, our production process is checked layer by layer, our technology of permanent magnet frequency intelligent operation is stable and reliable.

4. Oil-free advantages:
*Adopt German SKF heavy load bearing and chisel wheel, stable operation;
*Adopt imported high-end machining center to process host machine, high precision and high efficiency;
*Low maintenance cost, reduce the operating cost;
*Over temperature anti-corrosive coating design, long service life at high temperature.

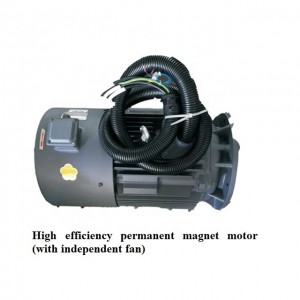

5. Pump with High efficiency permanent magnet motor (with independent fan).

6. Advantages of intelligent controller: Intelligent control system, improve the high performance of the vacuum pump system controller, realize the remote control of the Internet of things, multiple machines automatically switch the working mode, humanized man-machine interface.

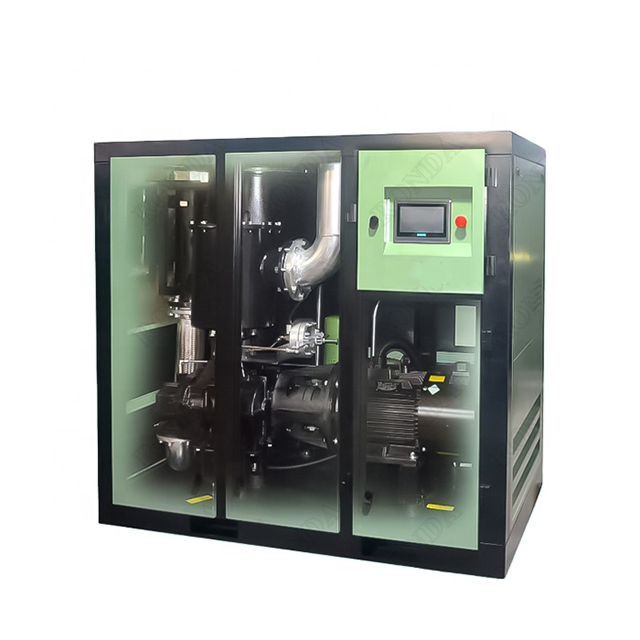

Oil-free vacuum pump

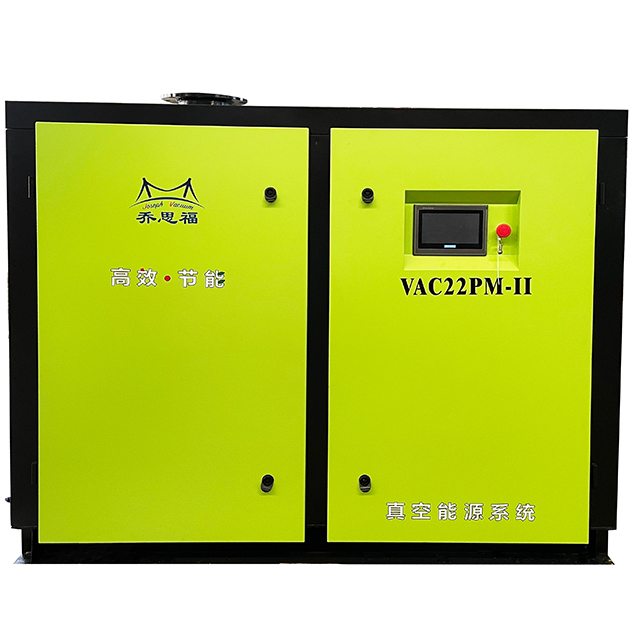

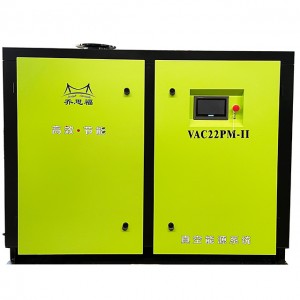

Oil-free Vacuum Pump Station

Technical Data

Vacuum pumps Model Power(kw) Flow(m³/min) Water Consumption(Tons/year) Annual water saving Power consumption (degrees/year) Save electricity consumption every year Save electricity bills every year
Vacuum energy system WE-15PM 15KW 13.71 1200 12400 120000 56000 $8,000
Water ring vacuum pump 2BE1 153-0 22KW 11 13600 176000
Vacuum energy system WE-22PM 22KW 21.45 1600 19200 176000 120000 $20,000
Water ring vacuum pump 2BE1 203-0 37KW 18.7 20800 296000
Vacuum energy system WE-30PM 30KW 29.6 1600 33600 240000 200000 $30,000
Water ring vacuum pump 2BE1 252-0 55KW 30.8 35200 440000
Vacuum energy system WE-37PM 37KW 38.19 1600 33600 296000 304000 $50,000
Water ring vacuum pump 2BE1 252-0 75KW 40.8 35200 600000
Vacuum energy system WE-45PM 45KW 48.79 1600 40000 360000 360000 $60,000
Water ring vacuum pump 2BE1 253-0 90KW 47.8 41600 720000
Vacuum energy system WE-55PM 55KW 57.42 2400 39200 440000 440000 $70,000
Water ring vacuum pump 2BE1 253-0 110KW 50.3 41600 880000
Vacuum energy system WE-75PM 75KW 77.98 2800 62800 600000 456000 $72,000
Water ring vacuum pump 2BE1 305-O 132KW 77.5 65600 1056000
Vacuum energy system WE-90PM 90KW 95 2800 69200 720000 560000 $80,000
Water ring vacuum pump 2BE1 353-0 160KW 91.7 72000 1280000

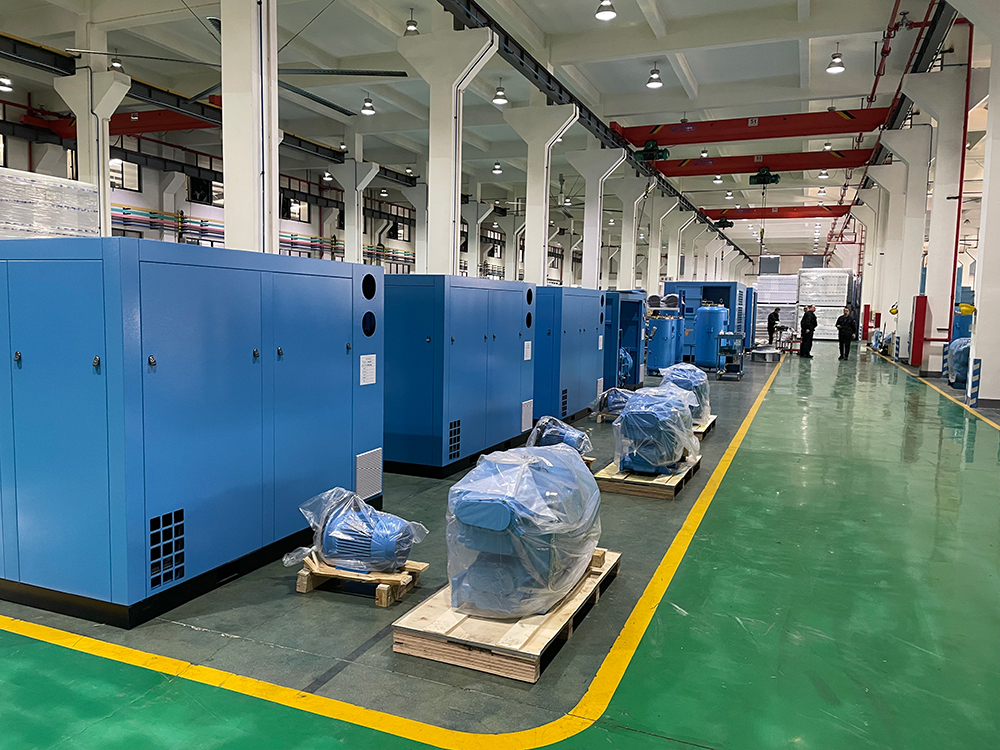

Oilless Vacuum Pump-1

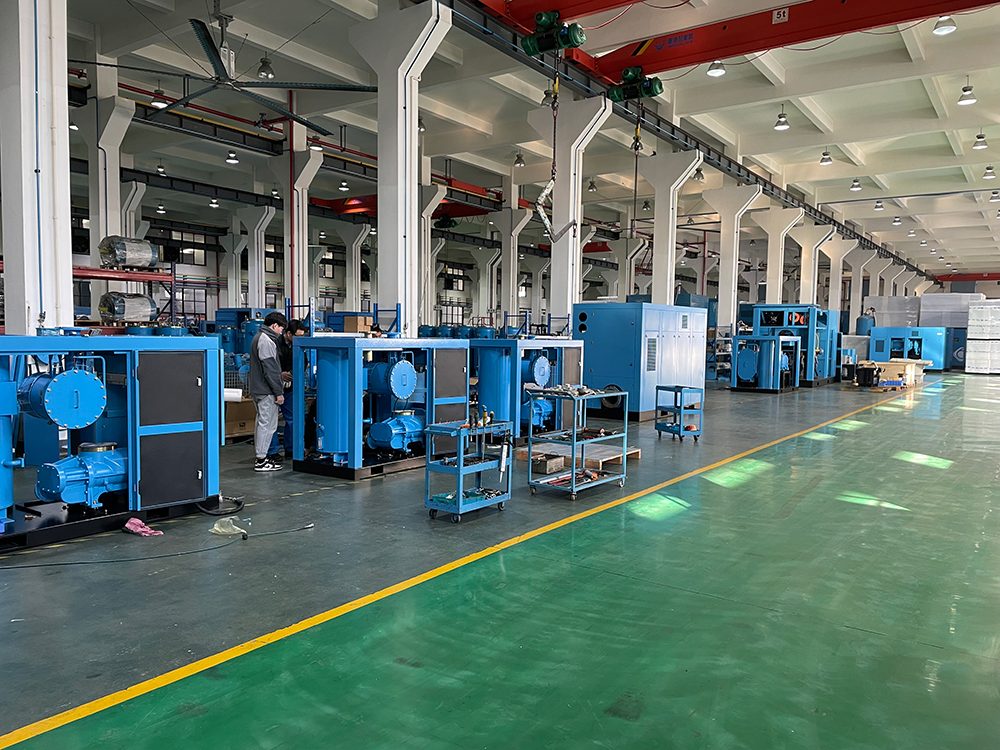

Oilless Vacuum Pump
