Big Discount Diesel Oil Steam Boiler - CNC Cutting Machine PSC2000-4000D – WELLEPS Detail:
Main Features
1.Machine the main frame connected by strong steel and various special fittings, stable movement, control accurately
2.Machine use stepping motor, ensuring smooth movement, speed adjust automatically. This machine is suitable for cutting the special graphics, control accuracy to 0.5 mm
3.Machine use 3 kw transformer, through the electronic voltage regulator, the output voltage of 0-70 v adjustable, can installed 20 wire, cut 20 pcs of the same patterns at the same time

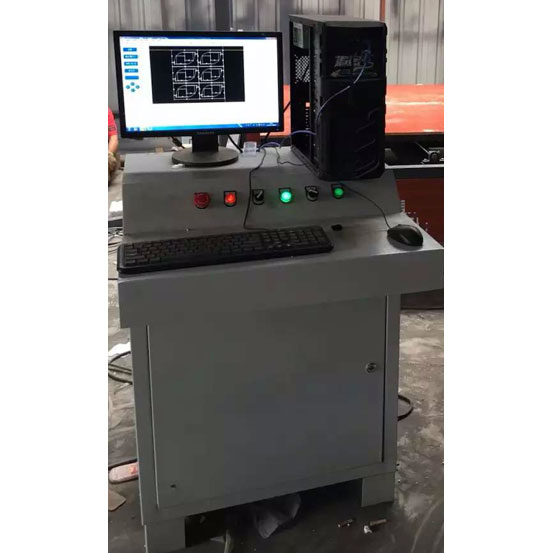

4.Machine famous brand computer, the use English operation system. Machine will automatically run and cutting according customer’s drawing
5.Screen display cutting design and cutting speed is adjustable
Type |
Cutting Size |
Cutting Wire |
Cutting Speed |
Machine Size |
Machine Weight |
SPC-2000D |
2000x2000x1500mm |
0.4mm |
0-4m/min |
3200x2500x2600mm |
600kg |
SPC-3000D |
3000x2000x1500mm |
0.4mm |
0-4m/min |
4200x2500x2600mm |
700kg |
SPC-4000D |
4000x2000x1500mm |
0.4mm |
0-4m/min |
5200x2500x2600mm |
820kg |
Optional
For the rotation platform is optional.
