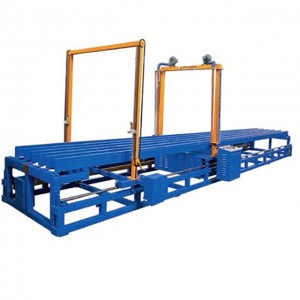

Automatic Cutting EPS Panels Cutting Machine
Main Features
1.Machine body use high strength of square tube and steel, with strong structure, beautiful appearance
2.Machine has horizontal, vertical, and cutting device, three direction cutting
3.Machine adopts frequency control of motor speed, large range of speed adjustable, smooth movement and low noise
4.Machine use 10 KVA transformer, big adjusting range, the cutting speed is fast
Technical Data
| Item | Type | ||||
| Unit | SPC200C | SPC400C | SPC600C | SPC800C | |
| Max Block Size | mm | 2000*1300*1300 | 4000*1300*1300 | 6000*1300*1300 | 8000*1300*1300 |
| Working Speed | 0~2m/min | 0~2m/min | 0~2m/min | 0~2m/min | |
| Power | Kw | 22.3 | 22.3 | 22.3 | 22.3 |
| Overall Dimension | mm | 4400*2600*3250 | 6400*2600*3250 | 8400*2600*3250 | 10400*2600*3250 |
| Weight | kg | 1300 | 2000 | 2800 | 3200 |
