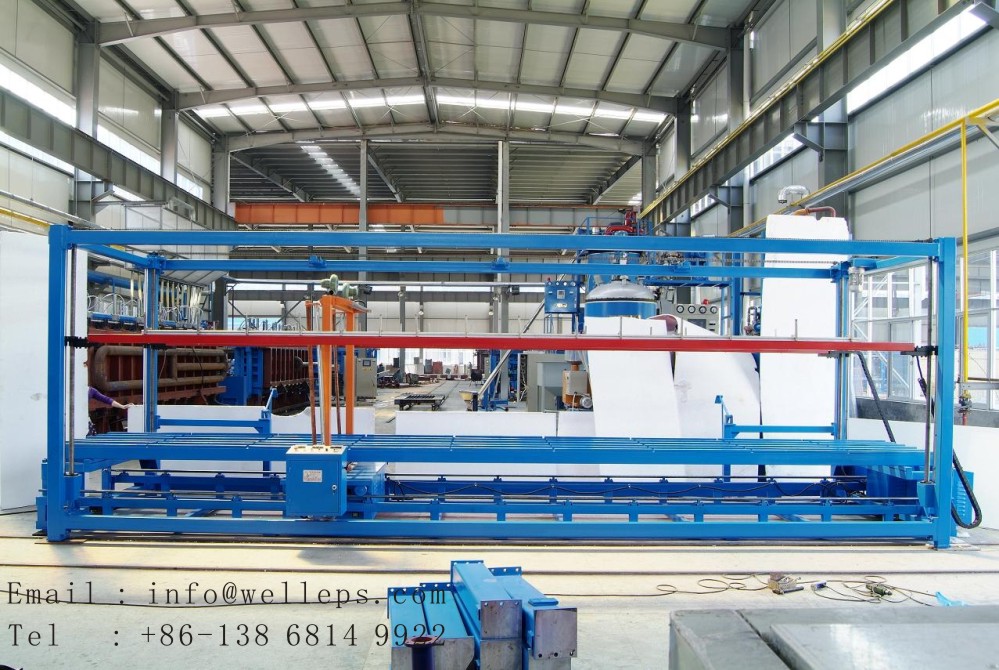

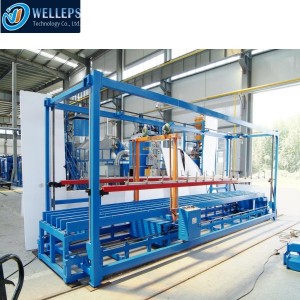

Fast EPS Cutting Machine
Main Features
1.Machine included all the advantages of A type machine, with strong structure, large capacity transformer, frequency control of motor speed, etc
2.Based on type A increase automatic cutting equipment, and used the frequency control of motor speed and voltage regulating device. Many wires cutting together, speed and voltage adjustable.
3. Machine size from 2m to 8m, or can design according customer's requirement.
Technical Data
Item | Unit | Type | |||
SPC200A | SPC400A | SPC600A | SPC800A | ||
Max Block Size | mm | 2000*1300*1300 | 4000*1300*1300 | 6000*1300*1300 | 8000*1300*1300 |
Power | Kw | 11.2 | 11.2 | 11.2 | 11.2 |
Overall Dimension | mm | 4800*1950*1850 | 6800*1950*2450 | 8800*1950*2450 | 10800*1950*2450 |
Weight | kg | 800 | 1200 | 1600 | 2000 |

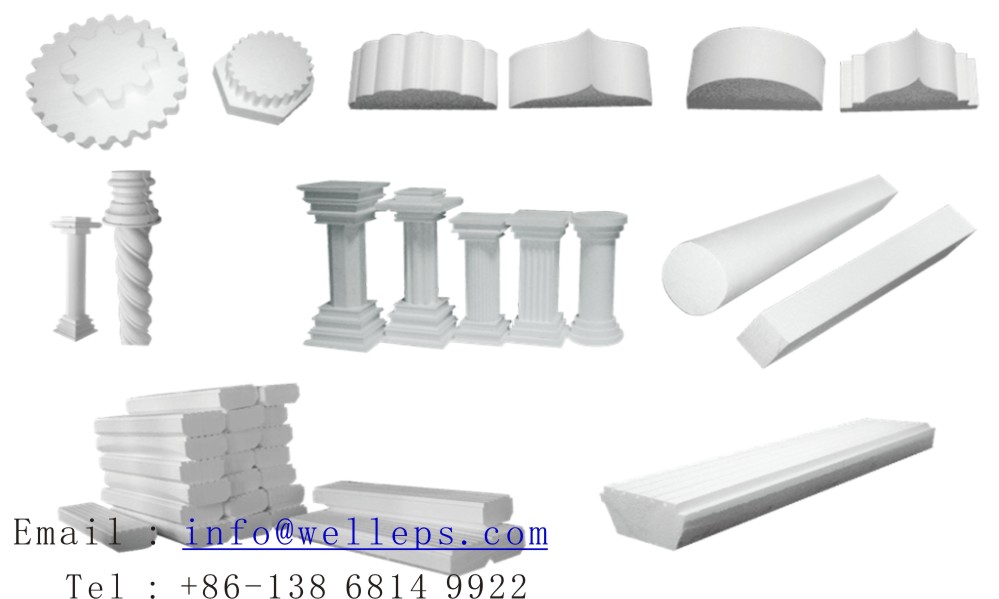

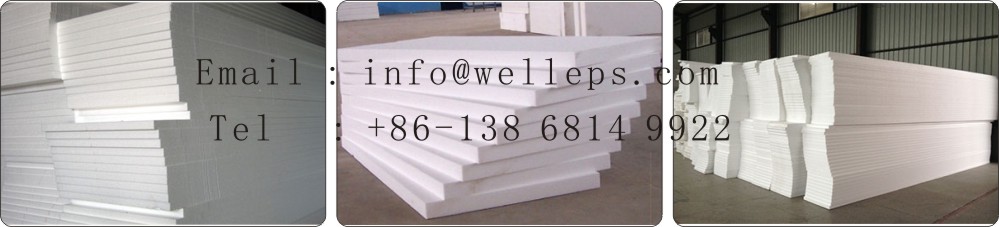

Application Of EPS Cutting Machine
