We depend on sturdy technical force and continually create sophisticated technologies to meet the demand of Insulation Foam, Television Package Machine, Water Osmosis, Our mission is to help you create long-lasting relationships with your clients through the power of promotional products.
2019 wholesale price Eps Crusher - Thermocol Foam Moulding Machine Fruit/Fish Boxes Packaging Making Molding Machine – WELLEPS Detail:

Main advantage:

1. Use servo drive system, the machine can work very stable.

2. Use two side steam and vacuum, machine works more efficiently.

3. With special design ejectors shelf for easy to install the moulds.

Features of eps foam box machine:

1.Equipment body use the high strength steeel welded together, after the tempering process, sandblasting

processing, to ensure the machne have strong structure, not get rust and increae the machine’s working life.

2.Equipment adopts Mitsubishi PLC(programmable controller) and touch screen control. The whole

production process is working automatically.

3.Macine with high-pressure feed system, feeding mould fast,machine can install 36 pcs filling guns.

4.Machine with wacuum system, it can make the cycle time shorter ,cooling much faster ,and reduce the

moisture content of products, so that products moisture content of 8% or even less.

5.Machine use double cylinder for the ejector frame, action smoothly and work coordination, to ensure not

damage the products when ejecting.

6.Hydraulic system with large flow hydraulic pressure drive, move fast, lock mouled even, low noise and

energy saving,etc.

eps machine1

Item   PSZS-1412 PSZS-1816 PSZS-2018
Mould Dimension mm 1400*1200 1850*1600 2000*1800
Rear window dimensions mm 1250*1050 1700*1450 1750*1650
Effective forming area mm 1200*1000 1500*1250 1650*1450
Max Produce Size mm 400 400 400
Steam Pipe connect DN 100 100 100
Die connect DN 40/6 40/8 40/8
Pressure kg/cm² <5 <5 <5
Consumption kg/cycle 3-12 3-15 3-18
Air Pipe connect DN 80/2 80/2 80/4
Pressure kg/cm² <4 <4 <4
Cooling Water Pipe connect DN 80 80 80
Die connect DN 25/2 25/3 25/3
Pressure kg/cm² <3 <3 <3
temperature ℃ 45-55 45-55 45-55
Single Vacuum Motor KW 5 7.5 7.5
Connect DN 100 100 100
Drain DN 40 40 40
Dain water DN 25 25 25
Vacuum Center Connect DN 100 100 100
Drainage Drain Outlet Φ 159 159 159
Mould Outlet DN 40/3 40/4 40/4
Hydralic system Motor KW 7.5 11 11
Pump L/min 31/97 31/116 31/116
Lock power T 24 37 46
Open-close cylinder mm 100*2 125*2 140*2
Demould cylinder mm 50*2 50*2 50*2
Hopper Volume m³ 0.3 0.4 0.4
Motor KW 1.5 2.2 2.2
Material hole Pieces 22 44 44
Electric Load KW 16.5 20.7 20.7
Overall Dimension mm 4800*3320*2800 4800*3600*3200
Weight kg 7200 8000

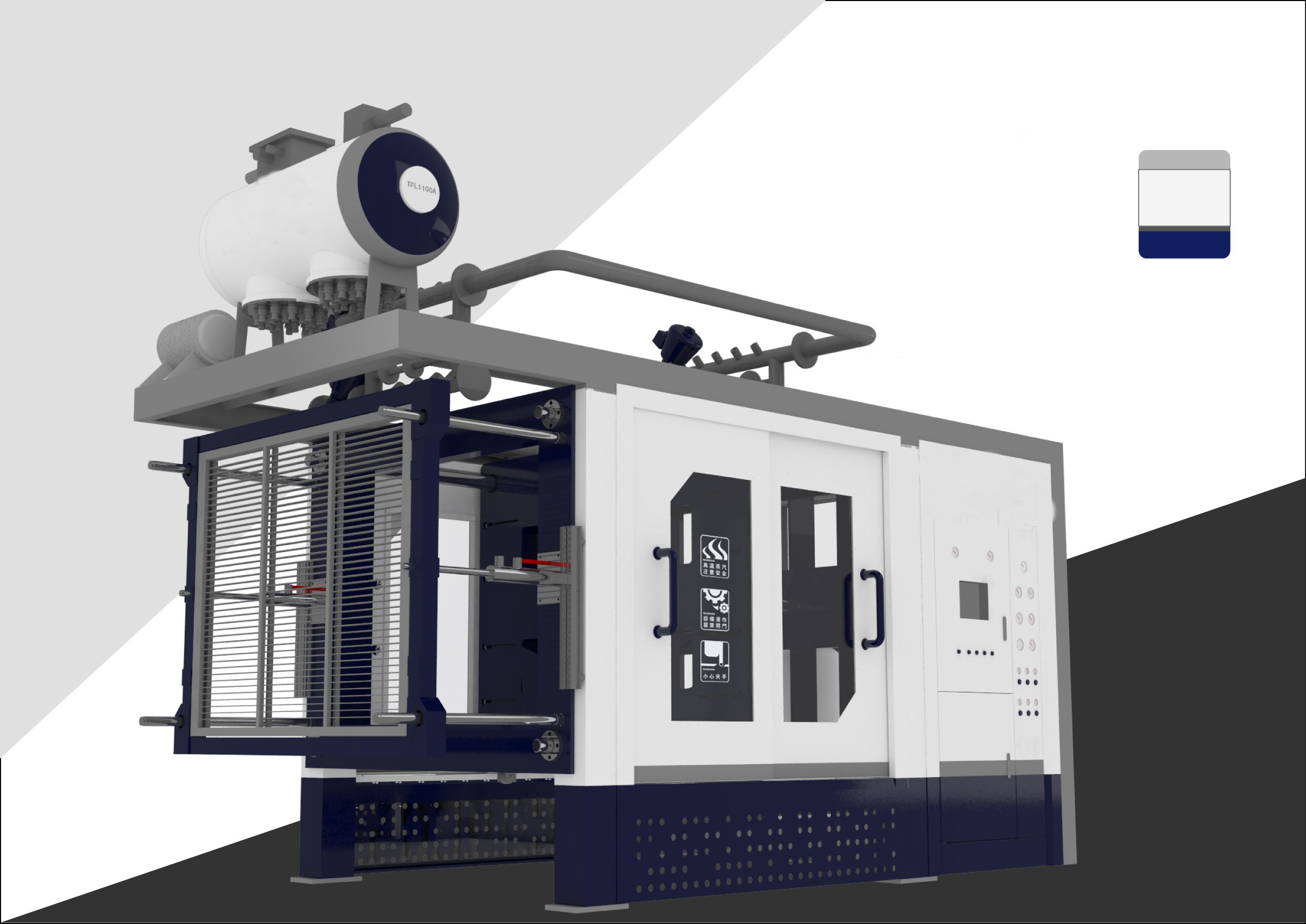

eps foam machine15

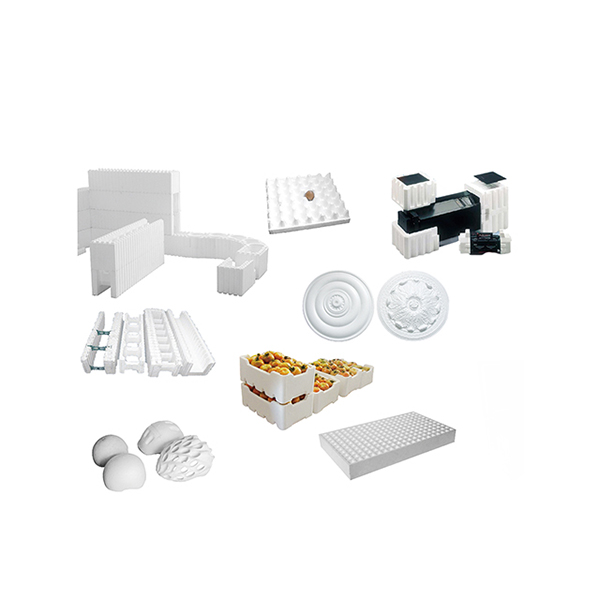

EPS foam Machine is widely used to make EPS foam fish box

EPS foam packages for transpotation

EPS ICF blocks for construction building

EPS foam decoration cornice ceilling,etc.

HTB1

Services:

1. Value clients, guarantee equipment quality and answer clients’ questions anytime and anywhere.

2. Customizing machines according to clients’ inquiry , such as different design, different brand parts, different colors, more function,etc.

3. Engineers go to clients’ factory in time for installation , training and trial production .

4. Lifetime technical service support.

Packaging & Shipping :

Packing: standard exporting package

Shippingport: shanghai/Ningbo

eps machine

 If you are interested in any of our products or would like any support from      us about yourfactory or any others, please feel free to contact us.

We are looking forward to building longwell and friendly business relationships with clients from all over the world.



Product detail pictures:

2019 wholesale price Eps Crusher - Thermocol Foam Moulding Machine Fruit/Fish Boxes Packaging Making Molding Machine – WELLEPS detail pictures

2019 wholesale price Eps Crusher - Thermocol Foam Moulding Machine Fruit/Fish Boxes Packaging Making Molding Machine – WELLEPS detail pictures

2019 wholesale price Eps Crusher - Thermocol Foam Moulding Machine Fruit/Fish Boxes Packaging Making Molding Machine – WELLEPS detail pictures

2019 wholesale price Eps Crusher - Thermocol Foam Moulding Machine Fruit/Fish Boxes Packaging Making Molding Machine – WELLEPS detail pictures
